Removing Control Unit For Convertible Top

Information

If the control unit for the convertible top must be replaced, first the values must be read from the control unit using the PIWIS Tester 9718  . → 619619 REMOVING AND INSTALLING CONVERTIBLE TOP CONTROL UNIT  - chapter on "Programming"

1. Unscrew both fastening screws -1-  for the convertible top control unit.

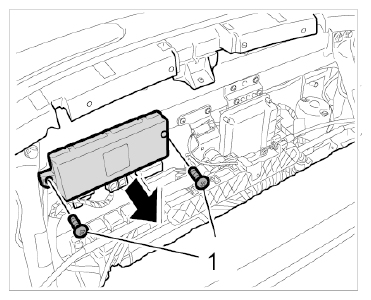

   Fig 1: Removing Convertible Top Control Unit Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove control module, disengage the connector housing -arrow A-  to the right, and pull it down and off. Press plug connection -arrow B-  together and pull it down and off. Disengage plug connection -arrow C-  upward and to the right, and pull it down and off.

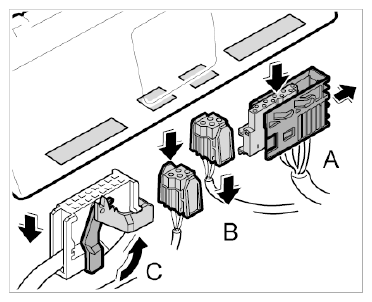

   Fig 2: Removing Electrical Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
