Installing Control Unit For Hood

Information

If the control unit for the convertible top must be replaced, first the values must be read from the control unit using the PIWIS Tester 9718  . → 619619 REMOVING AND INSTALLING CONVERTIBLE TOP CONTROL UNIT  - chapter on "Programming"

1. Join electric plug connections -arrow C-  and engage the locking lever downward. Connect the plug connection -arrow B-  . Join plug connection -arrow A-  and press the plug housing to the left until it engages. Lay lines carefully (do not trap).

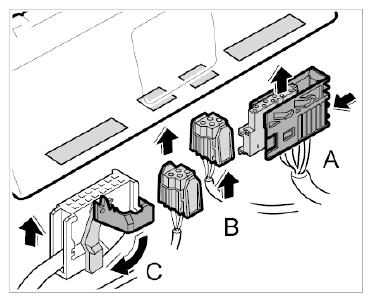

   Fig 1: Installing Electric Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Position the control unit and secure with both fastening screws -1-  . → Tightening torque: 4.8 Nm (3.5 ft. lb.)

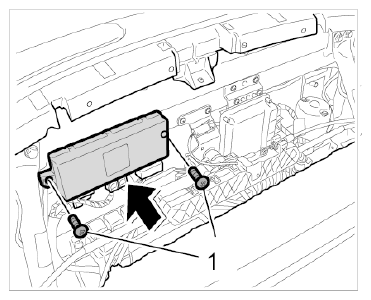

   Fig 2: Tightening Control Unit Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
