Removing Seal For Convertible-Top Compartment Lid: Overview

Move convertible top to position shown in the illustration.

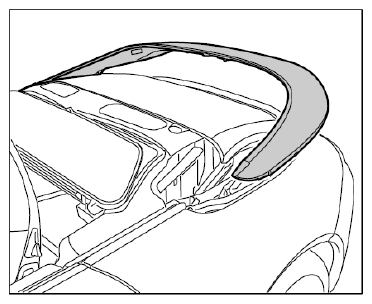

Fig 1: Identifying Convertible Top (Service Position)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull seal for convertible-top compartment lid off the flanges at the side panels -Arrows A- and at the corner pieces -Arrows B- , as well as off the flanges connecting to the engine compartment bulkhead -Arrows C- .

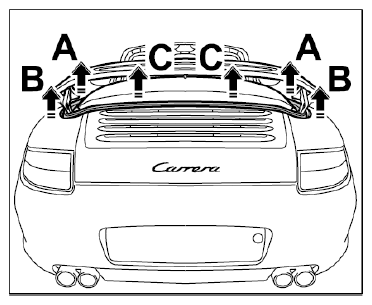

Fig 2: Removing Convertible-Top Compartment Lid Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
