Removing Hinge For Hood Compartment Lid

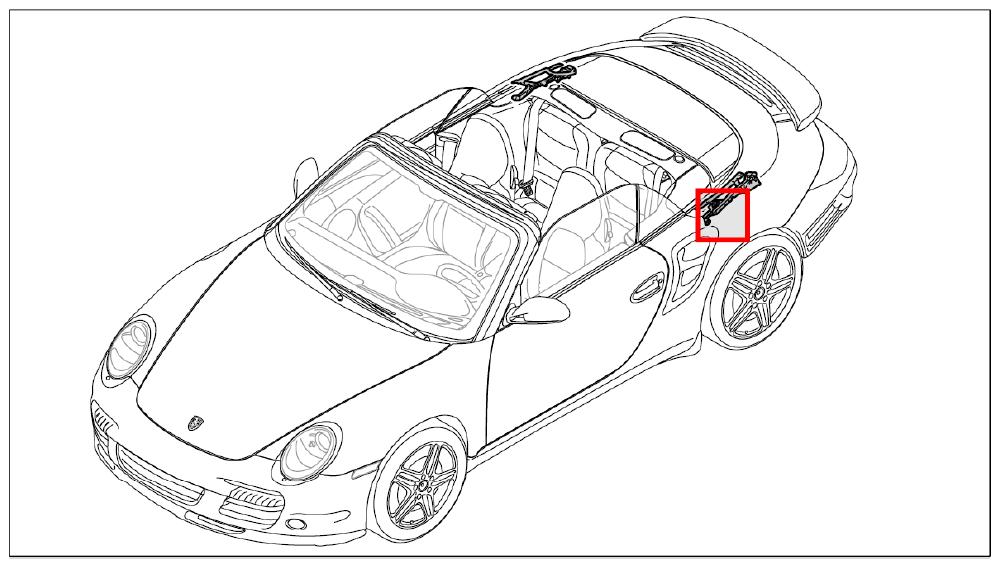

Fig 1: Identifying Hood Compartment Lid Hinge Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The seal is damaged when removing the hinge.

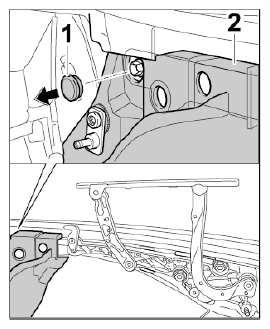

1. Detach rubber sleeve -1-  on the water drip pan -2-  (-arrow-  ).
   Fig 2: Detaching Rubber Sleeve

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

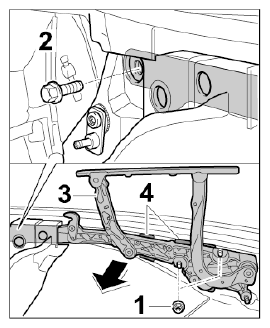

2. Unscrew fastening nuts -1-  and fastening screw -2-  .
   Fig 3: Removing Hinge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Detach hinge for hood compartment lid -3-  from the body or loosen seal -4-  using a spatula -arrow-  .
