Subsequent Work: Overview

  1. Press rubber sleeve -1-  into the water drip pan -2-  (-arrow-  ).

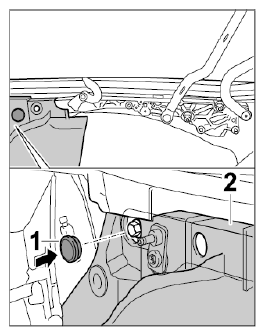

    Fig 1: Installing Hinge
    G09832225Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Completely install convertible-top compartment lid. → 619019 REMOVING AND INSTALLING CONVERTIBLE-TOP COMPARTMENT LID  - section on "Installing"
