Removing Hinge For Convertible-Top Compartment Lid

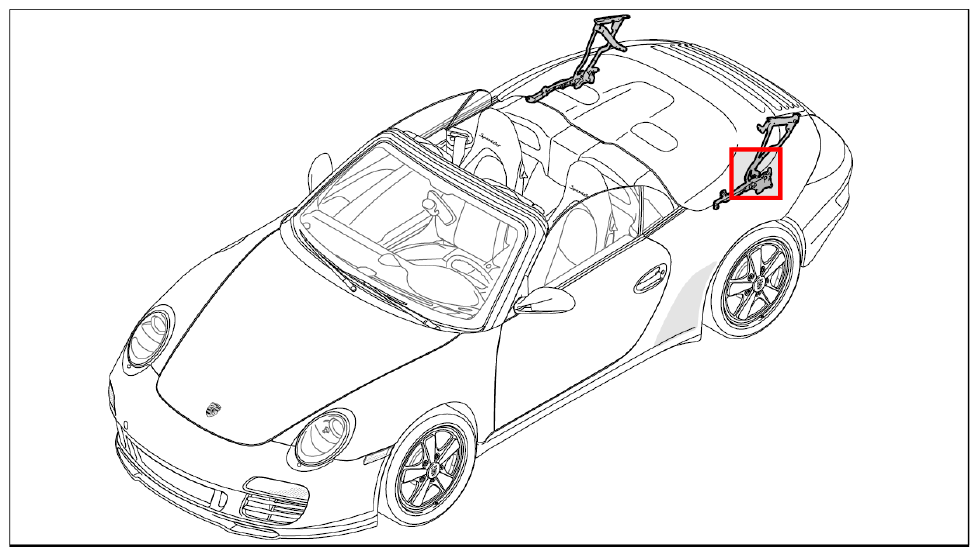

Fig 1: Identifying Convertible-Top Compartment Lid Hinge Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

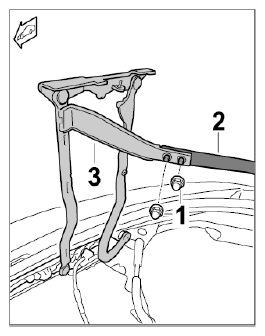

Loosen fastening nuts -1- and disconnect transverse strut -2- from the hinge -3- .

Fig 2: Removing Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

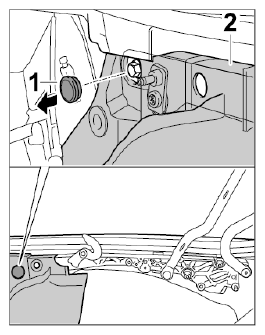

Pull off rubber sleeve -1- at the water drip pan -2- .

Fig 3: Removing Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The seal is damaged when removing the hinge.

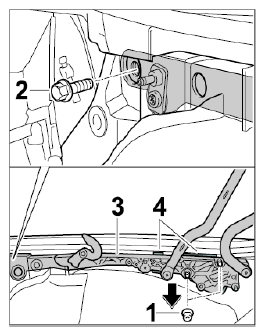

Unscrew fastening nuts -1- and fastening screw -2- .

Fig 4: Removing Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect the hinge -3- from the body and loosen the seal -4- with a spatula -arrow- .
