Adjusting Hinge For Hood Compartment Lid

Information

Two people are needed to adjust the hinges for the hood compartment lid!

1. Close hood.

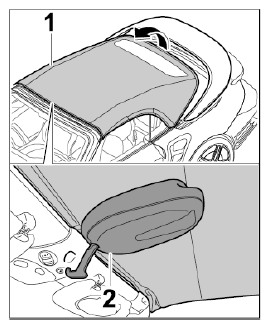

   Fig 1: Closing Hood

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Switch on ignition.
   2. 1.2. Close hood -1-  carefully -arrow-  until the hood lock -2-  is positioned against the upper cowl panel frame.
   3. 1.3. Switch off ignition.
2. Carefully fold rear hood (rear window) upwards -arrows-  .

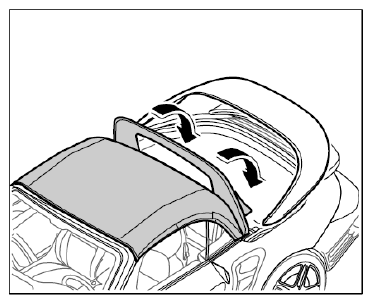

   Fig 2: Turning Rear Hood

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Pull off seal for hood compartment lid -1-  at the left and right in the front area -arrows-  .

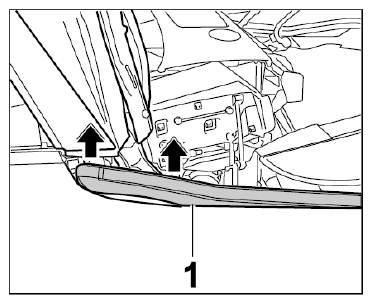

   Fig 3: Pulling Hood Compartment Lid Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Pull off rubber sleeve -1-  from the water drip pan -2-  at the left and right -arrow-  .
   Fig 4: Detaching Rubber Sleeve

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Detach hinge and hood support.

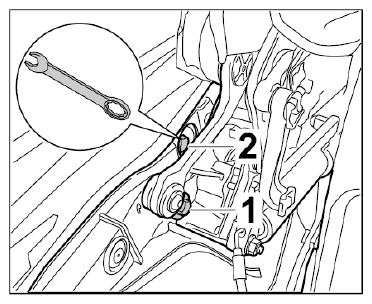

   Fig 5: Detaching Hinge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 5.1. Unscrew fastening screw -1-  at the hood support at the left and right by 3 turns.
   2. 5.2. Unscrew fastening screw -2-  at the hinge at the left and right by 3 turns.

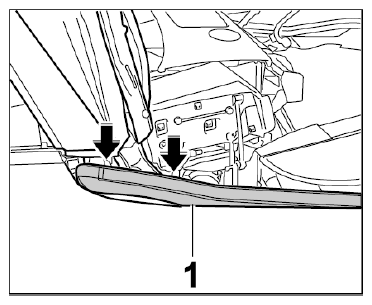

6. Press in seal for hood compartment lid -1-  at the left and right -arrows-  .
   Fig 6: Pressing Hood Compartment Lid Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Lock hood compartment lid.

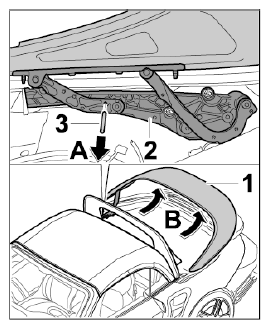

   Fig 7: Locking Hood Compartment Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 7.1. Carefully move hood compartment lid -1-  forwards by hand -arrows A-  .
   2. 7.2. Lock hinges -2-  at the left and right using a Ø5 mm centering pin (shop-made tool) -3-  (-arrow B-  ).
8. Lock hood compartment lid.

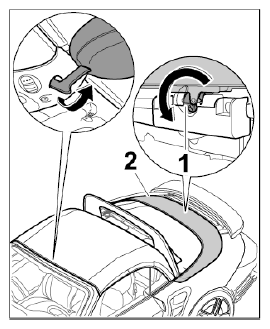

   Fig 8: Locking Hood Compartment Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 8.1. Switch on ignition.
   2. 8.2. Completely close hood until the locking hook -1-  locks the hood compartment lid -2-  (-arrows-  ).
   3. 8.3. Switch off ignition.

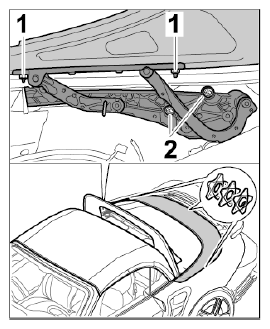

9. Adjust hood compartment lid and hinge.
   Fig 9: Identifying Hood Compartment Lid And Hinge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 9.1. Unscrew fastening nuts -1-  at the hood compartment lid and fastening screw -2-  at the hinge at the left and right.
   2. 9.2. Check contours with respect to the side panels and the rear lid and adjust if necessary. → WM 5X00IN DIAGRAM - BODY GAP DIMENSIONS (ALL MODELS)
   3. 9.3. Tighten fastening nuts -1-  at the hood compartment lid and fastening screw -2-  at the hinge at the left and right. → Tightening torque: 9.7 Nm (7 ft. lb.) → Tightening torque: 9.7 Nm (7 ft. lb.)
10. Release hood compartment lid.
    Fig 10: Releasing Hood Compartment Lid

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

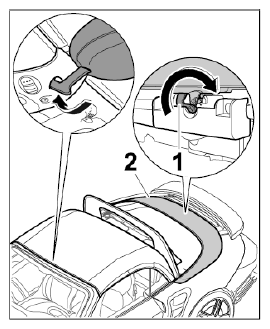

    1. 10.1. Switch on ignition.
    2. 10.2. Open hood until the locking hook -1-  releases the hood compartment lid -2-  (-arrows-  ).
    3. 10.3. Switch off ignition.
11. Release hood compartment lid.
    Fig 11: Releasing Hood Compartment Lid

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 11.1. Remove centering pin -3-  from the hinges -2-  at the left and right -arrow A-  .
    2. 11.2. Carefully move hood compartment lid -1-  to the rear by hand -arrows B-  .
12. Pull off seal for hood compartment lid -1-  at the left and right in the front area -arrows-  .
    Fig 12: Pulling Hood Compartment Lid Seal

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

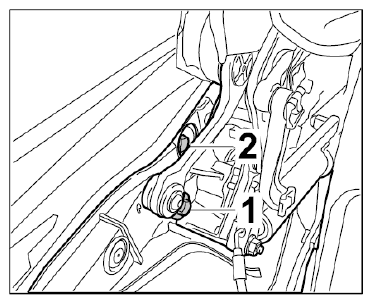

13. Secure hinge and hood support.

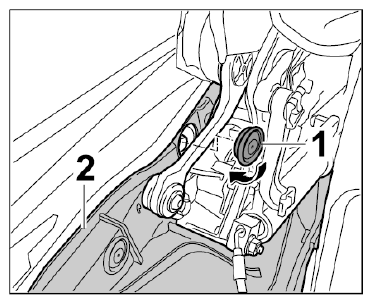

    Fig 13: Securing Hinge And Hood Support

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 13.1. Tighten fastening screw -1-  at the hood support at the left and right. → Tightening torque: 50 Nm (37 ft. lb.)
    2. 13.2. Tighten fastening screw -2-  at the hinge at the left and right by hand.

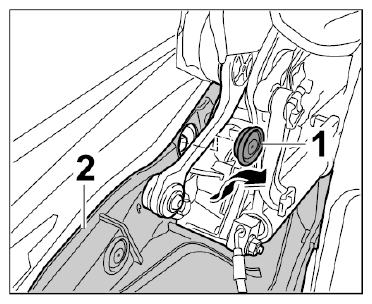

14. Press rubber sleeve -1-  into the water drip pan -2-  at the left and right -arrow-  .
    Fig 14: Pressing Rubber Sleeve

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
15. Fold rear hood (rear window) downwards -arrows-  .

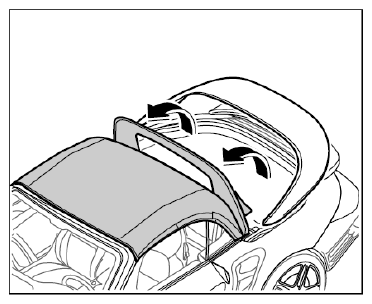

    Fig 15: Turning Hood

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
16. Move hood to service position.
