Removing Additional Flap

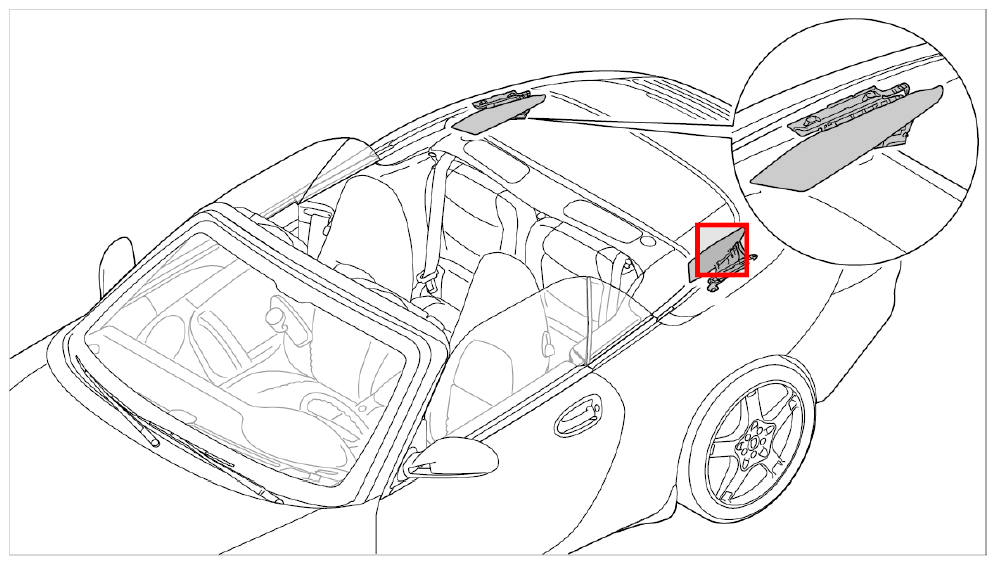

Fig 1: Additional Flap Installation Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Press locking lever -1- toward the front -arrow A- (direction of travel).

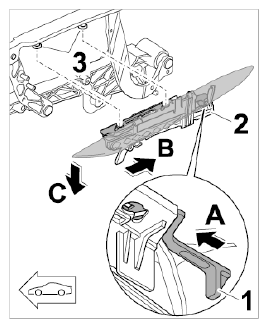

Fig 2: Removing Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull additional flap -2- backward -arrow B- and pull downwards out from hinge pins B of the convertible-top compartment lid -3- -arrow C- .
