Installing Additional Flap

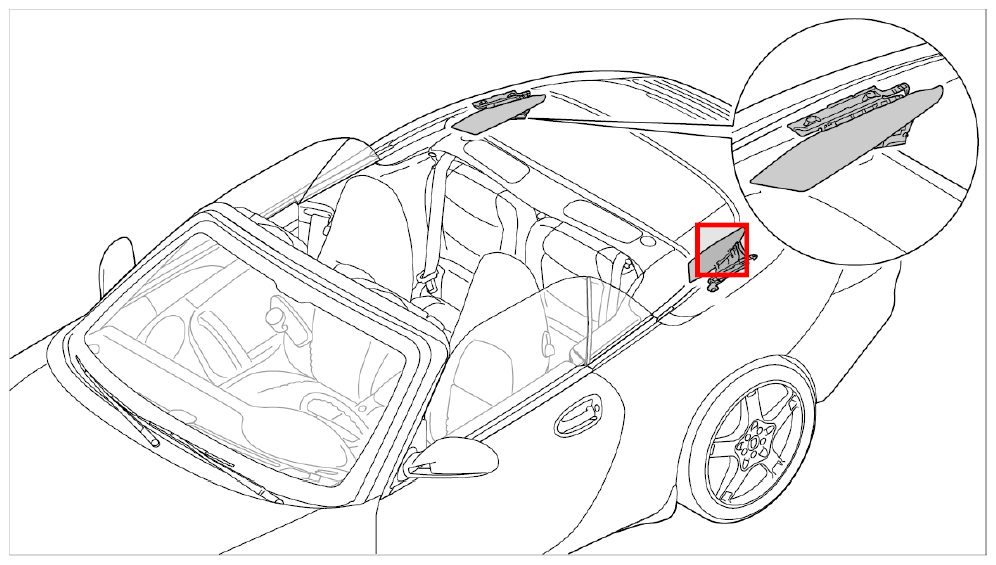

Fig 1: Additional Flap Installation Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert additional flap -2- upward onto hinge pins of the convertible-top compartment lid -3- -arrow A- and pull forward -arrow B- .

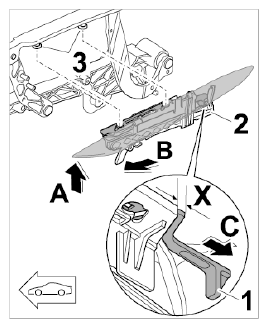

Fig 2: Installing Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull locking lever -1- backward -arrow C- (against direction of travel) to lock the additional flap. The additional flap -2- is locked if locking lever -1- projects approx. 5 to 8 mm over the body of the additional flap in the area of dimension -X- .
End convertible top service position.
