Subsequent Work

  1. Release the convertible-top compartment lid and swivel it to the rear -arrow-  .

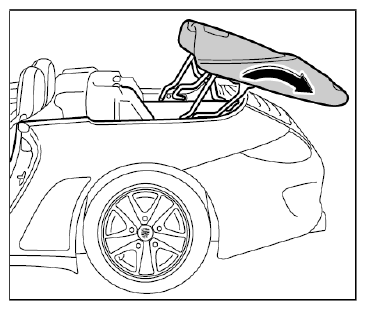

    Fig 1: Opening Convertible-Top Compartment Lid
    G09832165Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install pneumatic spring (convertible-top compartment lid). → 613219 REMOVING AND INSTALLING PNEUMATIC SPRING  - section on "Installing"
  3. Fold convertible-top compartment trim -1-  to the rear and align it -arrows-  .

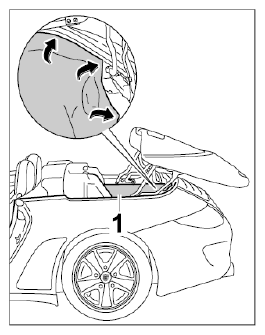

    Fig 2: Securing Convertible-Top Compartment Trim
    G09832166Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Move convertible top to its original position.
