Releasing Wire Harness For Additional Brake Light

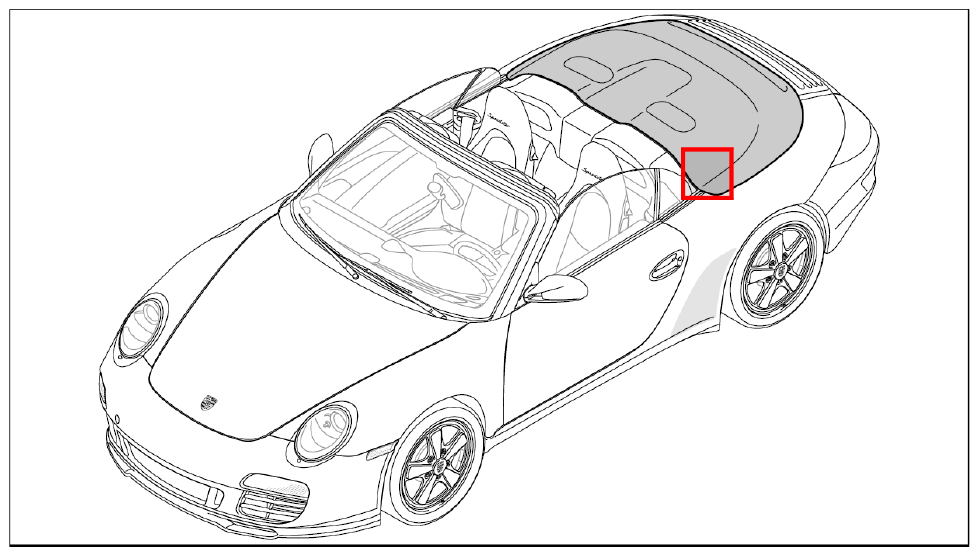

Fig 1: Convertible-Top Compartment Lid Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

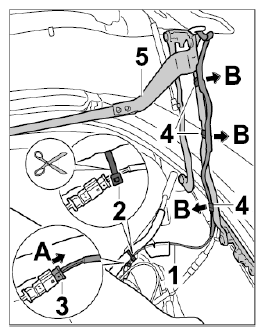

1. Cut tie-wraps -2-  around wire harness for additional brake light -1-  .
   Fig 2: Disconnecting Brake Light Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release plug connection for additional brake light -3-  and pull it off -arrow A-  .
3. Unclip wire harness holder -4-  at the convertible-top compartment lid hinge -5-  (-arrows B-  ).
