Preliminary Work

  1. Move convertible top to service position. → 6101IN CONVERTIBLE TOP SERVICE POSITION
  2. Remove pneumatic spring (convertible-top compartment lid). → 613219 REMOVING AND INSTALLING PNEUMATIC SPRING  - section on "Removing"
  3. Fold trim panel for convertible top compartment -1-  at the left forward -arrows-  until the plug connection for the convertible-top compartment lid can be reached.

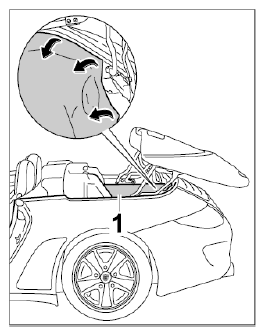

    Fig 1: Loosening Convertible-Top Compartment Trim
    G09832157Courtesy of PORSCHE CARS NORTH AMERICA, INC.
