Removing Hydraulic Cylinder

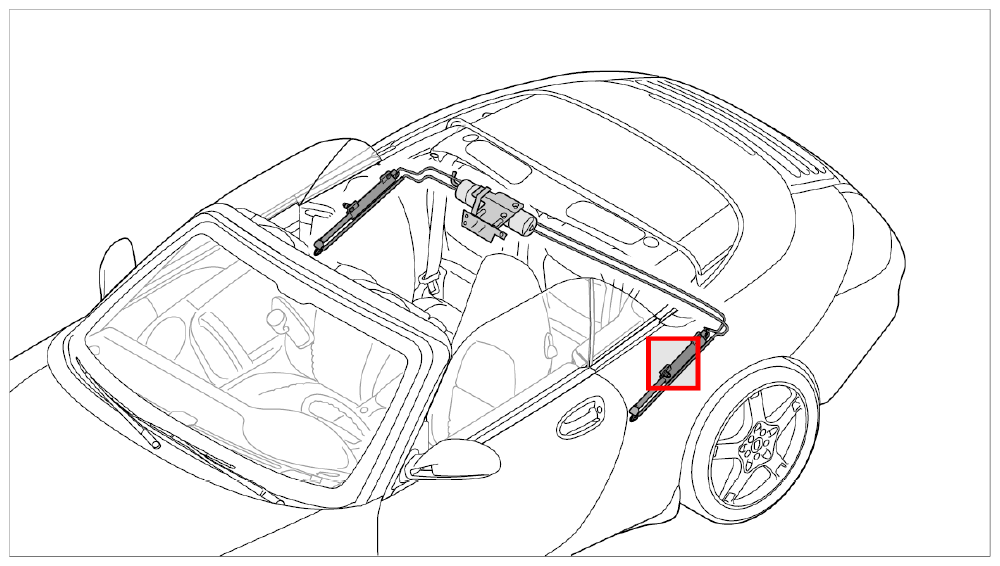

Fig 1: Identifying Hydraulic Cylinder Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Do not bend, trap or crush hydraulic lines.

→ Protect hydraulic system from contamination.

1. Remove splash guard.

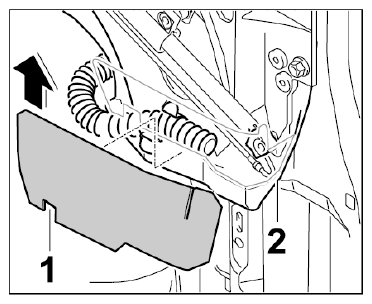

   Fig 2: Removing Splash Guard

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Pull the splash guard -1-  up out of the chamber in the water drip pan -2-  (-arrow-  ).
2. Disconnect hydraulic lines.

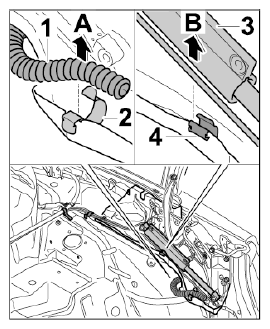

   Fig 3: Disconnecting Hydraulic Lines At Front

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Pull the water drain hose -1-  out of the retaining clip -2-  (-arrow A-  ).
   2. 2.2. Pull the hydraulic line -3-  out of the retaining clip -4-  (-arrow B-  ).
   3. 2.3. Press hydraulic lines -1-  out of the retaining clip -2-  (-arrow A-  ).

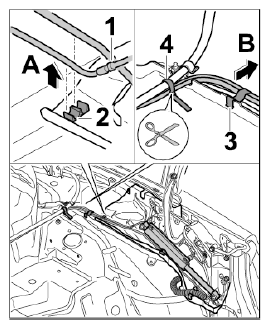

      Fig 4: Disconnecting Hydraulic Lines At Rear

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 2.4. Press hydraulic lines out of the retaining clip -3-  (-arrow B-  ).
   5. 2.5. Remove tie-wrap -4-  .
3. Remove drive lever.

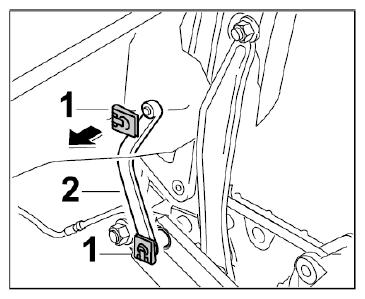

   Fig 5: Removing Drive Lever

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Press the two safety clips -1-  off the drive lever -2-  using the Springfix System Assembly Tool For Pin Circlips Nr. 131  .
   2. 3.2. Remove the drive lever -2-  (-arrow-  ).
4. Disconnect hydraulic cylinder.

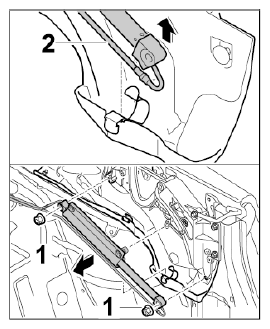

   Fig 6: Disconnecting Hydraulic Cylinder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 4.1. Unscrew fastening nuts -1-  .
   2. 4.2. Pull the hydraulic cylinder -2-  out slightly using the drive lever and lift it up and off -arrows-  .
