Installing Hydraulic Cylinder

→ Avoid small bending radii when routing lines.

→ File down edges and burrs in the routing area or mask them with adhesive tape.

→ Maintain a sufficient distance from components exposed to high temperatures while driving.

1. Secure the hydraulic cylinder.

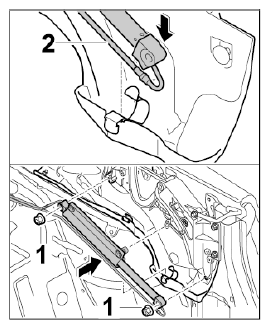

   Fig 1: Installing Hydraulic Cylinder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Position hydraulic cylinder -2-  on the hood support with the drive lever and slide the potentiometer fork into the pin of the hydraulic housing (on the left side only) -arrows-  .
   2. 1.2. Tighten fastening nuts -1-  . → Tightening torque: 17 Nm (13 ft. lb.) +/-2 Nm (+/-1.5 ft. lb.)

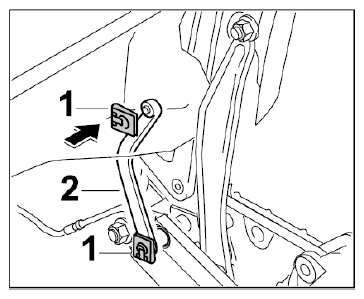

2. Connect drive lever -2-  (-arrow-  ) and secure with the safety clip -1-  .
   Fig 2: Installing Drive Lever

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Secure hydraulic lines.

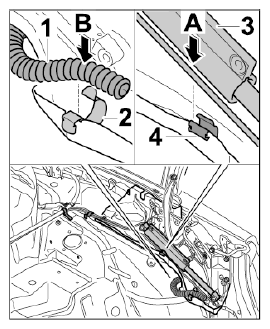

   Fig 3: Securing Hydraulic Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Press hydraulic line -3-  into the retaining clip -4-  (-arrow A-  ).
   2. 3.2. Press water drain hose -1-  into the retaining clip -2-  (-arrow B-  ).
   3. 3.3. Press hydraulic lines -1-  into the retaining clips -3-  (-arrow A-  ).

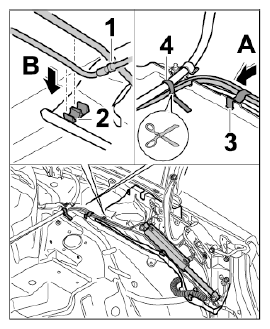

      Fig 4: Securing Hydraulic Lines

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 3.4. Secure hydraulic lines using a tie-wrap -4-  .
   5. 3.5. Press hydraulic lines into the retaining clip -2-  (-arrow B-  ).

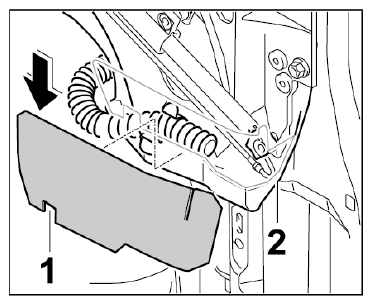

4. Fit the splash guard -1-  in the chamber in the water drip pan -2-  (-arrow-  ).
   Fig 5: Installing Splash Guard

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
