Filling The Hydraulic System

Information

• When filling the hydraulic system, proceed with utmost care to ensure that dirt does not get into the system.
• Before unscrewing the screw plug, place a cloth underneath the hydraulic unit to catch emerging hydraulic oil.
• The hydraulic convertible top uses a closed hydraulic system. In general, the hydraulic system will need to be filled only if the hydraulic circuit was opened (after parts replacement). Only Original Porsche hydraulic oil → OIL must be used when changing or topping up the hydraulic oil.

1. Fill the hydraulic pump.

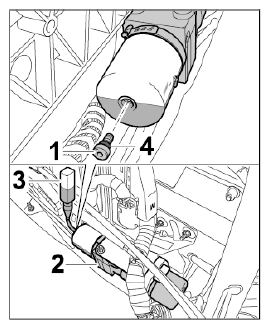

   Fig 1: Identifying Hydraulic System

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Unscrew screw plug -1-  .
   2. 1.2. Fill hydraulic pump -2-  as far as the cross hair marking with Genuine Porsche hydraulic oil -3-  .

      Information

      When screwing in the screw plug -1-  , ensure that the seal -4-  is touching the screw head.

   3. 1.3. Screw in screw plug -1-  . → Tightening torque: 1 Nm (0.5 ft. lb.) +/-0.3 Nm (+/-0.2 ft. lb.)
