Removing Microswitch For Convertible-Top Compartment Lid Drive

  1. Unscrew the three fastening screws -7, 8-  for the microswitch holder.

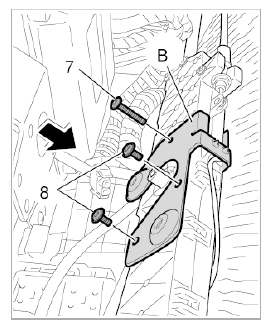

    Fig 1: Removing Microswitch Holder Fastening Screws
    G09832127Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Lift the holder -B-  out.
  3. If necessary, replace microswitch complete with holder.
