Installing Microswitch For Convertible-Top Compartment Lid Drive

  1. Mount the new microswitch with holder -B-  on the convertible-top compartment lid drive and tighten with the fastening screws -7, 8-  .

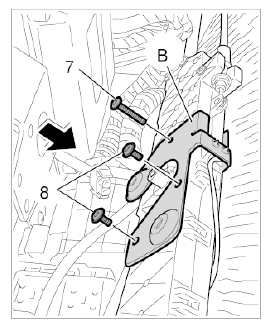

    Fig 1: Removing Microswitch Holder Fastening Screws
    G09832128Courtesy of PORSCHE CARS NORTH AMERICA, INC.
