Installing Cable For Locking Hook: Notes

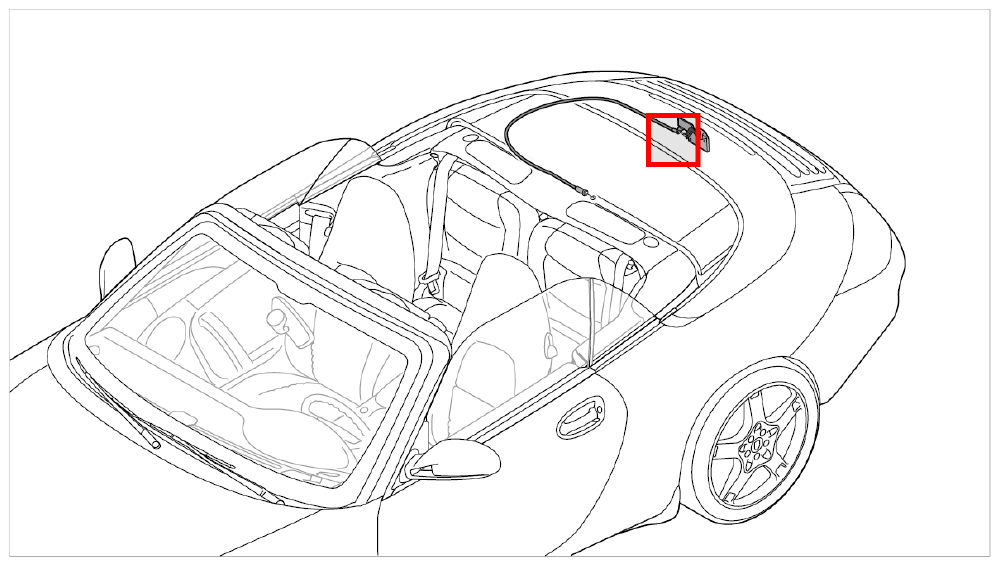

Fig 1: Locking Hook Cable Installation Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Position cable for locking hook -1-  with support on the body and screw down the fastening screws -3-  . Tightening torque → Tightening torque: 7.5 ft. lb.

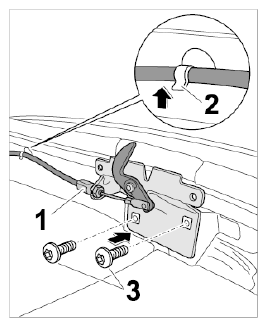

   Fig 2: Installing Locking Hook Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Engage cable for locking hook -1-  to the cable holder -2-  .
3. Position trim -2-  and secure with the expansion rivets -1-  .

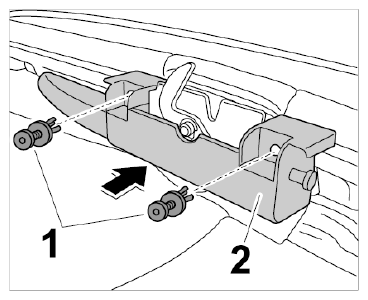

   Fig 3: Installing Trim

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
