Engaging Cable For Locking Hook

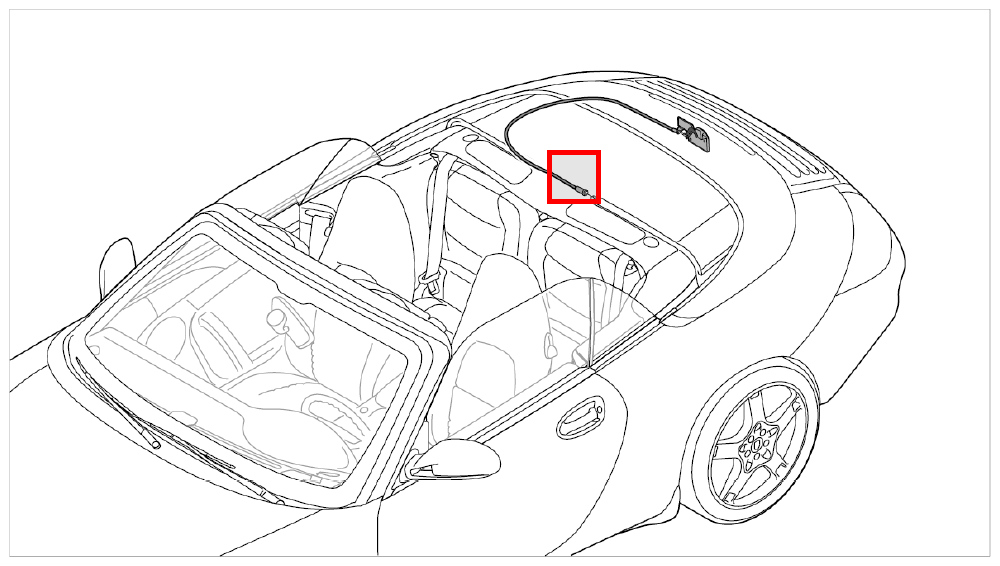

Fig 1: Locking Hook Cable Installation Location
G09832125Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Insert nipple in the driving mechanism -3-  , adjust cable for locking hook -1-  using the hexagon nut -2-  so that it is without play.

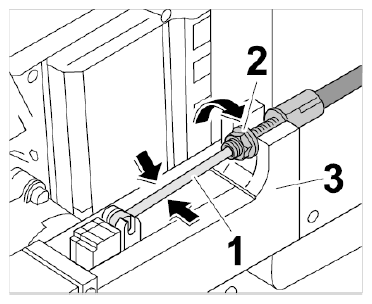

    Fig 2: Engaging Locking Hook Cable
    G09832126Courtesy of PORSCHE CARS NORTH AMERICA, INC.
