Disengaging Cable For Locking Hook

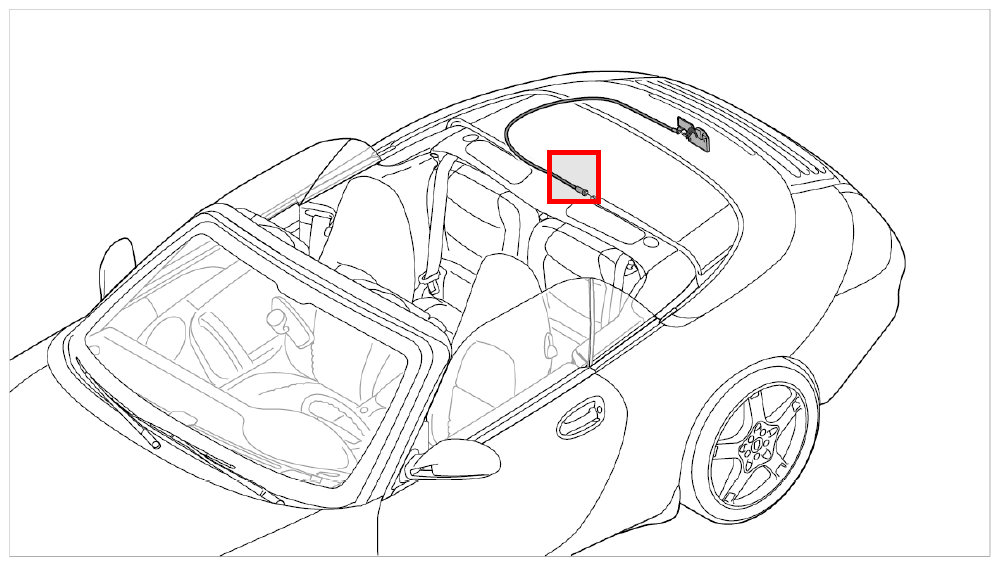

Fig 1: Locking Hook Cable Installation Location
G09832105Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Loosen cable for locking hook -1-  on the hexagon nut -2-  and swivel the nipple from the driving mechanism -3-  upwards and pull out.

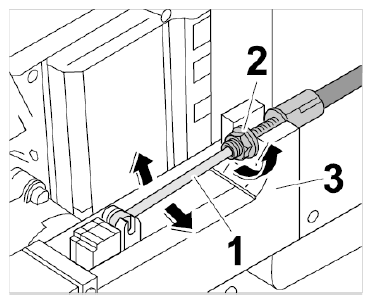

    Fig 2: Disengaging Locking Hook Cable
    G09832106Courtesy of PORSCHE CARS NORTH AMERICA, INC.
