Installing Convertible-Top Compartment Lid Drive Gear: Notes

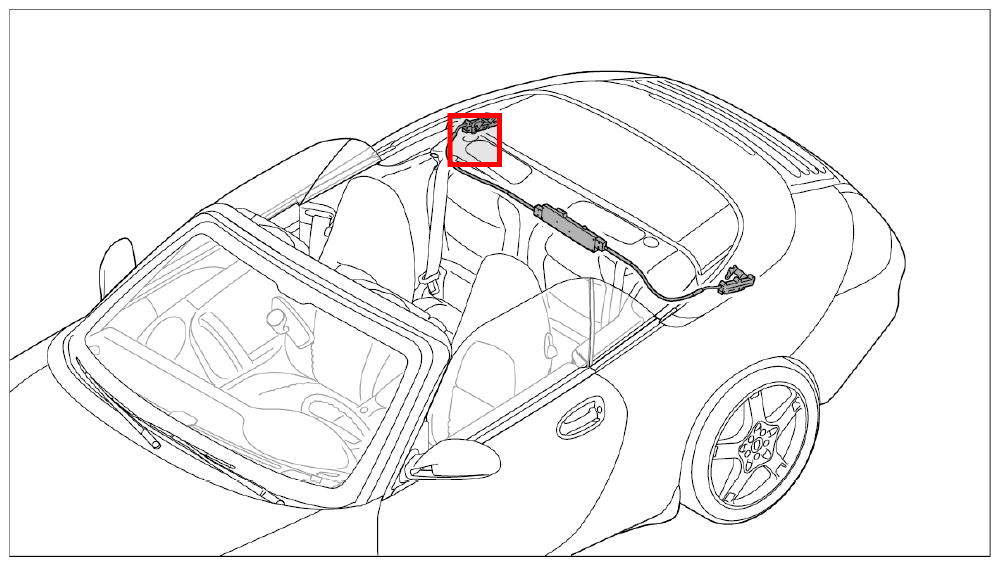

Fig 1: Convertible-Top Compartment Lid Drive Installation Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Position driving mechanism -1-  in the center on the hinge and screw down the positioning bolts -2-  . Tightening torque → Tightening torque: 7 ft. lb.

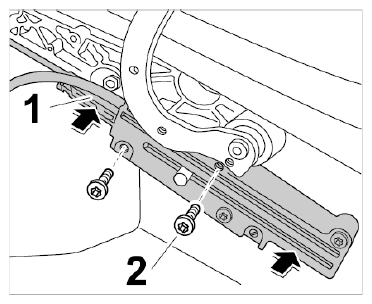

   Fig 2: Installing Driving Mechanism

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Push in plastic washer -4-  .

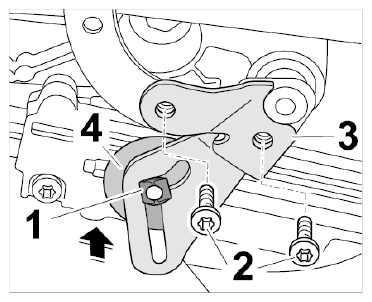

   Fig 3: Installing Deflector Rail

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Position deflector rail -3-  on hinge and secure with fastening screws -2-  . Tightening torque → Tightening torque: 7 ft. lb.
4. Press in fixing clip -1-  .

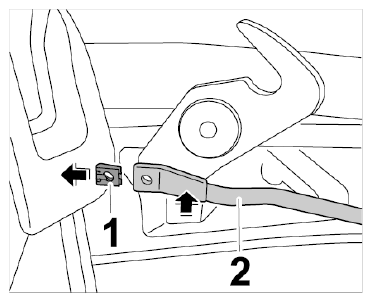

5. Position lever -2-  on locking hook and clip into fastening clip -1-  .
   Fig 4: Engaging Lever

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
