Engaging Cable For Locking Hook

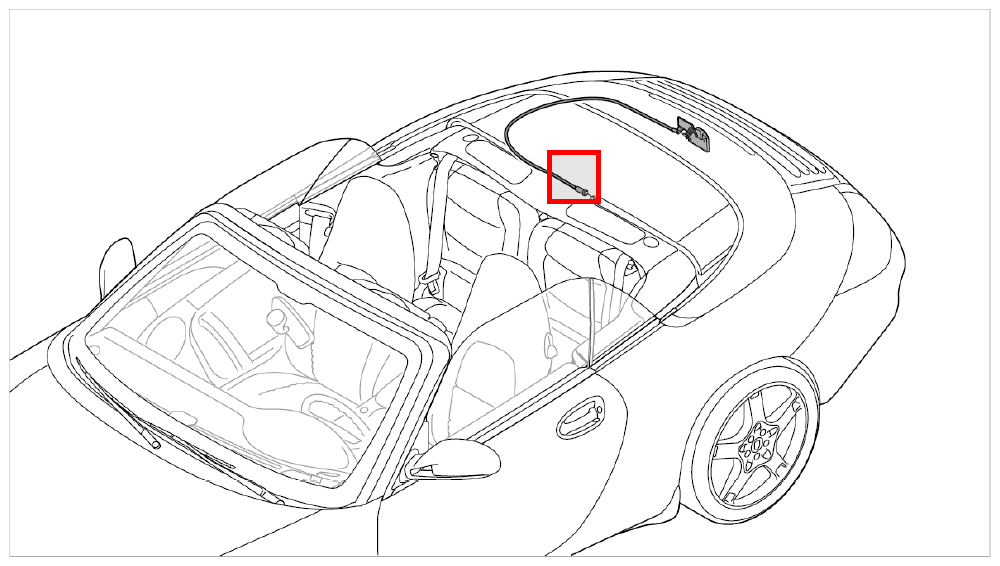

Fig 1: Locking Hook Cable Installation Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert nipple in the driving mechanism -3- , adjust cable for locking hook -1- using the hexagon nut -2- so that it is without play.

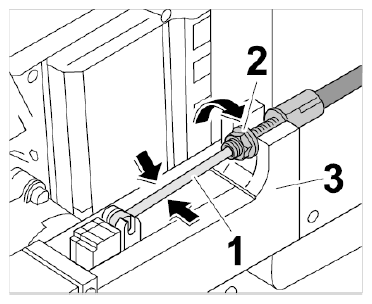

Fig 2: Engaging Locking Hook Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
