Removing Motor For Convertible-Top Compartment Lid Drive

Disengage electric plug connection for microswitch -5- from holder, release -A- and disconnect.

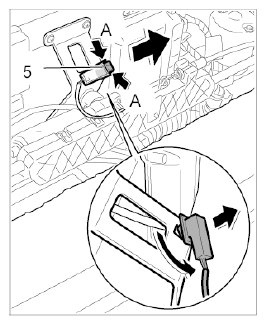

Fig 1: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen both fastening nuts -1- , release the electric plug connection -2- and unplug from control unit.

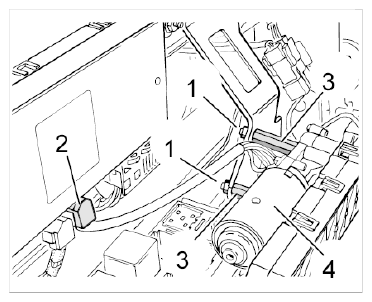

Fig 2: Removing Control Unit Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull motor with driving mechanism to the rear out of the console.
Loosen the two hexagon-head threaded bolts -3- and remove.

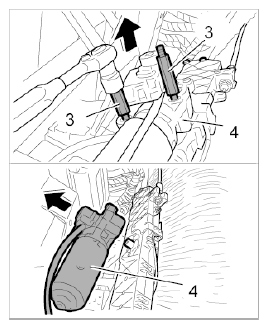

Fig 3: Removing Convertible-Top Compartment Lid Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove motor for convertible-top compartment lid drive -4- .
