Removing Potentiometer

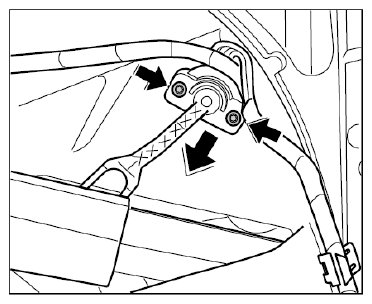

- Loosen the two fastening screws -arrow-
and remove the potentiometer.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unclip the potentiometer lines downwards and disconnect the electric plug connection (connection point X 26).
- Carefully remove insulating tape from the potentiometer to the plug connection without damaging any other wires. Expose the potentiometer lines (green, yellow and red).

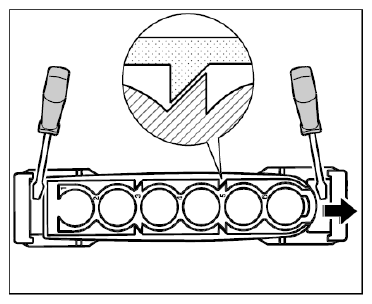

- Unlock both sides by inserting a small screwdriver and shift in the direction of the arrow. The figure -inset-
shows the secondary locking unlocked.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Release old contacts of the potentiometer lines with the unlocking tool Press-out and unlocking tools for flat and round plug connections of every size Nr. 155
and remove.
