Installing Potentiometer

Install and lock new contacts of the potentiometer lines. To do this, compare the assignment with the wiring diagram.
1. 1.1. Install the new contacts of the potentiometer in the same position as follows:
2. 1.2. Green wire (pin 1) to pin 9
3. 1.3. Yellow wire (pin 2) to pin 4
4. 1.4. Red wire (pin 3) to pin 8
5. 1.5. Close the secondary lock of the plug connection with a small screwdriver again.
Winding insulating tape around wires
Tighten potentiometer with both fastening screws.

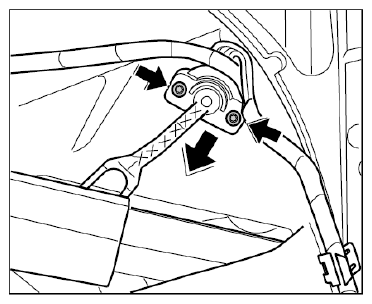

Fig 1: Installing Potentiometer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Route the electric plug connection and engage.
