Removing Microswitch For Roof

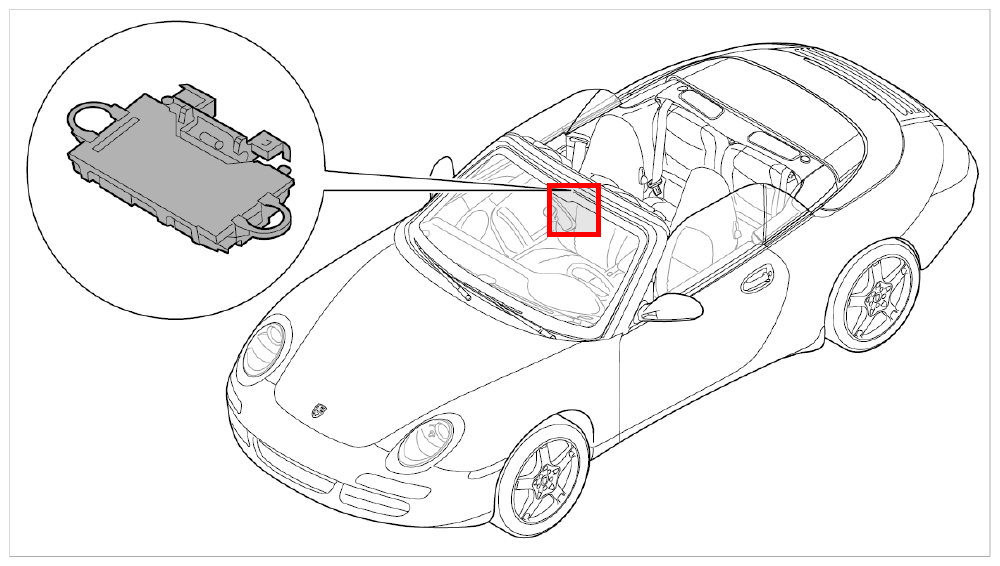

Fig 1: Identifying Roof Microswitch Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen circlips -1- (by turning them -Arrow a- with a small screwdriver) -2- from the front lock -4- and lift them up and off -Arrow A- .

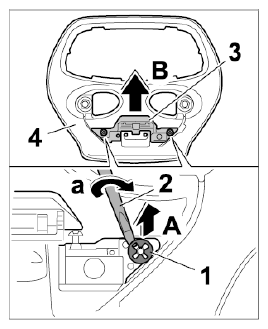

Fig 2: Removing Microswitch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove microswitch for roof -3- from front lock -4- by pulling it upwards -Arrow B- .
