Installing Microswitch For Roof

  1. Insert microswitch for roof -1-  from above -Arrow A-  into the front lock -2-  .

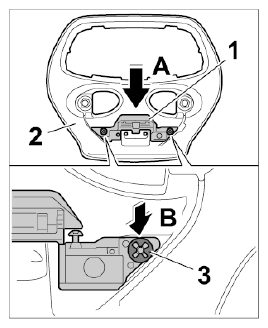

    Fig 1: Installing Microswitch
    G09832089Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    New circlips must always be used when securing the microswitch.

  2. Fit circlips -3-  from above -Arrow B-  and press in until they connect fully with the roof microswitch -1-  .
