Removing Switch For Roof

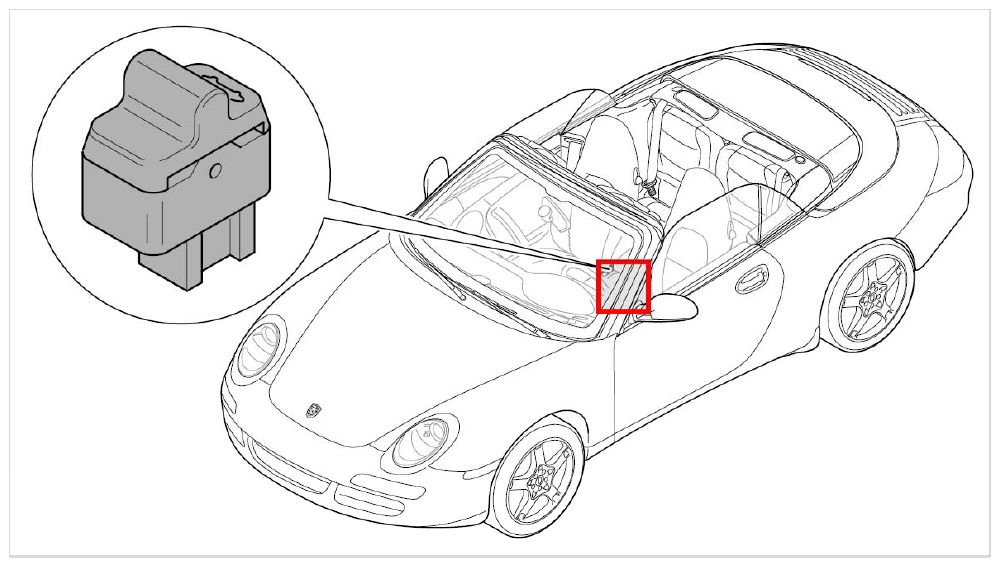

Fig 1: Identifying Roof Switch Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turn over center console.
Release connector -1- (-arrows a- ) and pull it off.
Press locking lugs on switch for roof -2- outwards -arrows b- and push switch for roof up out of the center console -3- .

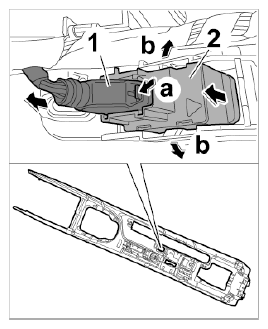

Fig 2: Removing Roof Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
