Installing Switch For Roof

Insert switch for roof -1- into the center console from above -2- until the locking lugs are felt to engage.

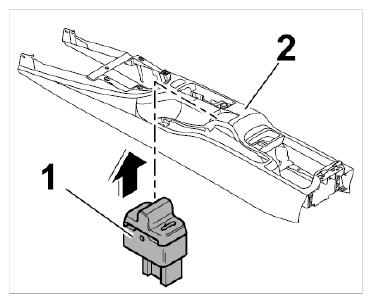

Fig 1: Installing Roof Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn over center console.
Push connector -1- onto switch for roof -2- until it is felt to engage.

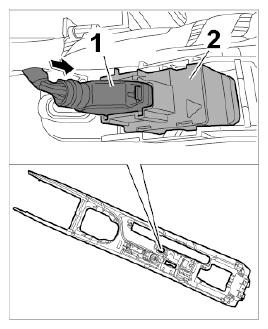

Fig 2: Pushing Connector Onto Roof Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
