Removing Linkage For Rear Cover

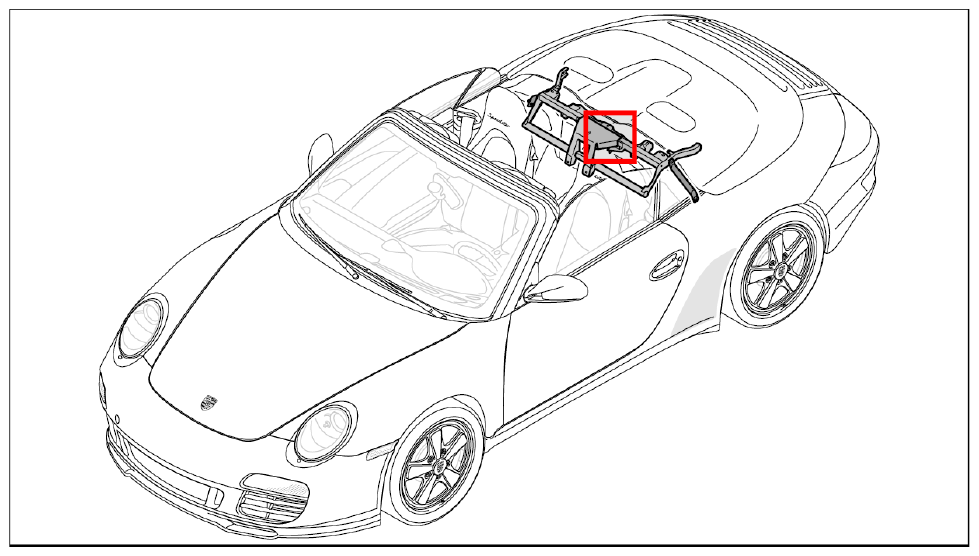

Fig 1: Identifying Rear Cover Linkage Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

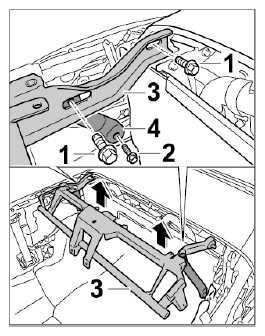

Unscrew fastening screws at the left and right -1, 2- on the linkage -3- and strut -4- .
The front fastening screw -1- must not be loosened if the linkage is to be refitted.

Fig 2: Removing Linkage
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Get another person to help you remove the linkage -3- from the vehicle -arrows- .
