Securing Seat Belt And Fitting

Information

Ensure that belt strap can run properly!

1. Secure fastening screw -2-  , washer -3-  , seat belt with fitting -4-  and spacer sleeve -5-  on the body. → Tightening torque: 50 Nm (37 ft. lb.) +/-10 %

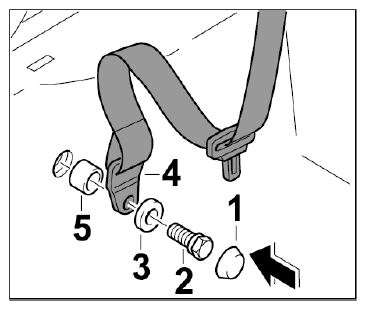

   Fig 1: Securing Seat Belt

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press cap -1-  onto the fastening screw -2-  (-arrow-  ).
