Removing Rear Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

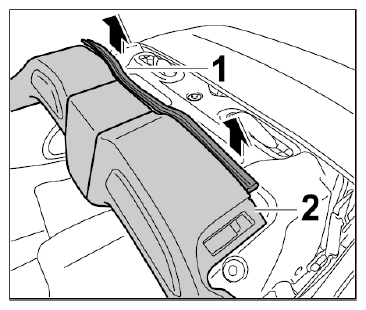

- Pull off seal on convertible-top compartment lid support -1-
(-arrows-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

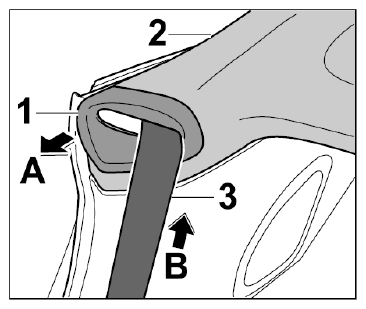

- Unclip the cover -1-
forward out of the side trim panel -2-
(-arrow A-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Guide the cover -1-
out of the seat belt -3-
(-arrow B-
).
- Remove rear cover at the center.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

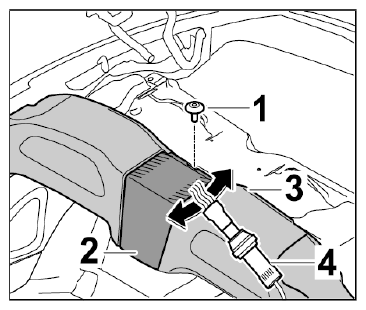

- 4.1. Unscrew fastening screw -1-
.
- 4.2. Heat the marked area of the rear cover at the center -2-
and the rear cover at the sides -3-
slightly using the hot-air blower -3-
(-arrows-
).

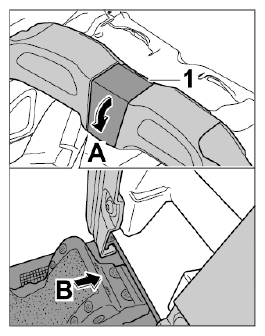

- 4.3. Lift the rear cover at the center -1-
up evenly, swivel it forward -arrow A-
and disengage it -arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

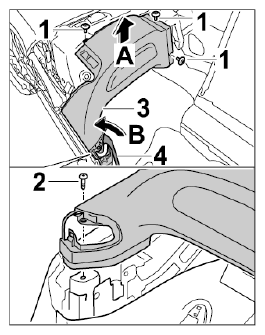

- Unscrew fastening screws -1, 2-
, remove the rear cover at the sides -3-
(-arrow A-
) and guide out the seat belt -4-
at the same time -arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove adhesive residue.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

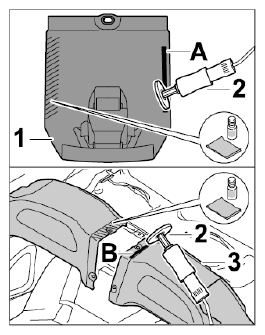

- 6.1. Remove adhesive residue -A, B-
from the rear cover at the center -1-
and the rear cover at the sides -3-
using an erasing disc -2-
.
- 6.2. Clean bonding surfaces with isopropyl.
