Loosening Seat Belt And Fitting

  1. Lever off cap -1-  with a screwdriver -arrow-  .

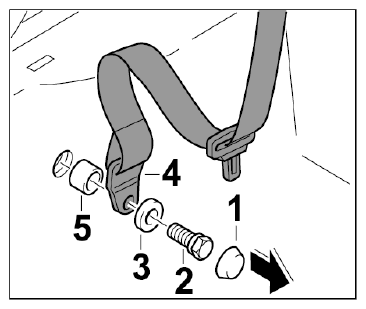

    Fig 1: Removing Seat Belt
    G09832048Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screw -2-  . Remove washer -3-  , seat belt mount -4-  and spacer sleeve -5-  .
