Installing Rear Cover

Information

Processing instructions for affixing adhesive tape

Surface condition:

• Surfaces must be dry, free of dust, oil, oxide release agents and other impurities (e.g. no paint mist, no condensation)
• To remove soiling, clean the surfaces with isopropyl or another suitable cleaning agent that does not leave a residue and does not attack the substrate.
• Use clean, lint-free disposable cloths to clean the surfaces.
• Prime the bonding area and allow to dry off.
• Do not touch the bonding surfaces with your fingers.

Temperature:

• The object and ambient temperature must be at least 18 °C for bonding.
• The material temperature should be maintained so that there are no dew-point differences (no condensation)

Contact pressure  :

• Press briefly and firmly on the bonding area to achieve optimal surface contact.

Optimal adhesion of the components is guaranteed after approx. 24 hours. Do not apply excessive pressure on the components and do not wash the vehicle during this period.

Information

Allow approx. 20 mm extra on top of the required lengths as a pulling aid (protective film without adhesive tape). The pulling aid makes it easier to pull off the protective film when the rear cover at the center is fitted.

1. Get adhesive strips ready.
   1. 1.1. Cut as much of the adhesive tape -A-  as you need to pull it off the protective film.

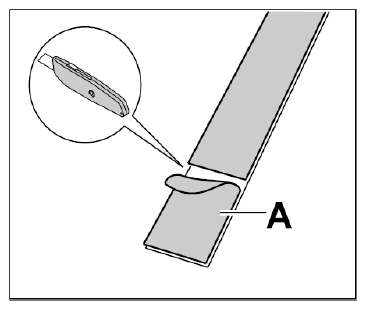

      Fig 1: Identifying Adhesive Strips

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Affix strips of adhesive tape according to the designations -A= 105 mm-  to the rear cover at the center -1-  .

   Place the pulling aids -X-  over the edge of the rear cover at the center.

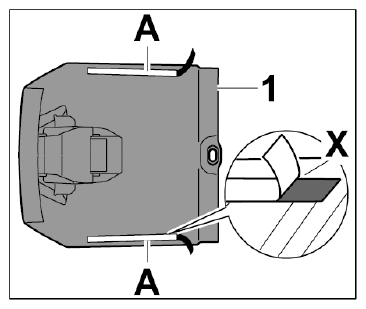

   Fig 2: Identifying Adhesive Tape Strips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install rear cover at the sides.

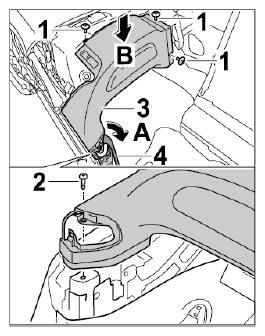

   Fig 3: Installing Rear Cover At Sides

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Guide in the seat belt -4-  (-arrow A-  ).
   2. 3.2. Position the rear cover -3-  on the linkage and align it -arrow B-  .
   3. 3.3. Fit fastening screws -1, 2-  on the rear cover and screw in slightly.
4. Install rear cover at the center.
   Fig 4: Installing Rear Cover At Center

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 4.1. Guide in rear cover -2-  horizontally at the bottom -arrow A-  , latch it at the bottom and then swivel it up -arrow B-  .
   2. 4.2. Fit the fastening screw -1-  on the top of the rear cover and screw in slightly.
5. Adjust the rear covers. → 615419 REMOVING AND INSTALLING REAR COVER (CROSSBAR)  - section on "Adjusting"
6. Secure the rear cover at the center.

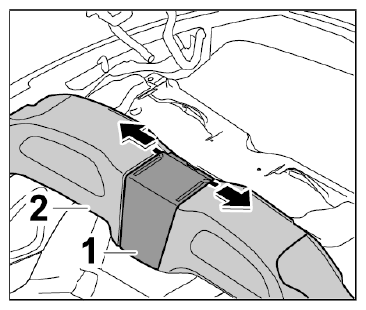

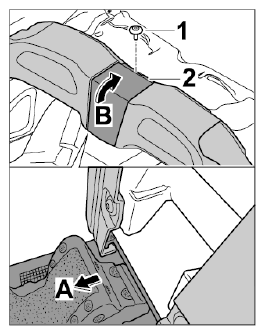

   Fig 5: Securing Rear Cover At Center

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 6.1. Carefully pull out the pull tabs on the adhesive tape between the rear cover at the center -1-  and the rear cover at the sides -2-  (-arrows-  ).
   2. 6.2. Press evenly and firmly on the bonding area of the rear cover at the center -1-  with the ball of your hand.
   3. 6.3. Heat the rear cover at the center slightly with the hot-air blower and press it on.
7. Install seat belt cover.

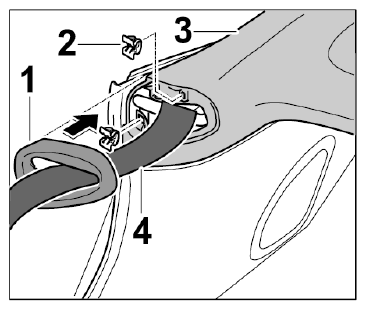

   Fig 6: Installing Seat Belt Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 7.1. Check clips -2-  for damage and replace them if necessary.
   2. 7.2. Guide the seat belt -4-  through the cover -1-  (-arrow-  ).
   3. 7.3. Press the cover -1-  with the locking lugs into the side trim panel -3-  until it clicks into place.
8. Press the seal for the convertible-top compartment lid support -1-  into the rear cover -2-  (-arrows-  ).

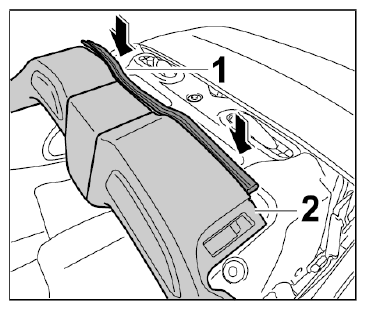

   Fig 7: Installing Convertible-Top Compartment Lid Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
