Removing Tension Rope

The following spare parts and tools are required for repairing the tension rope:

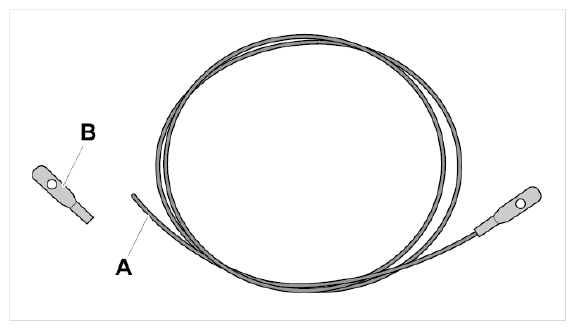

Fig 1: Identifying Tension Rope

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A  Tension rope

B  Eye

1. Disengage tension rope at the shaped sheetmetal part.
   1. 1.1. Cut open plastic sleeve -1-  with a pair of scissors.
   2. 1.2. Disengage tension rope -2-  from the tension spring -3-  at the shaped sheetmetal part.
   3. 1.3. Pull tension rope -2-  out of the piping -4-  .

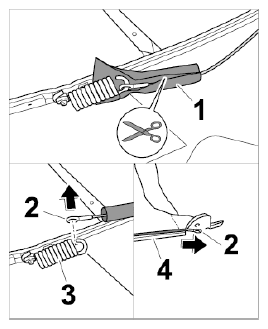

      Fig 2: Removing Tension Rope

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
