Preliminary Work

→ 6101IN HOOD IN SERVICE POSITION

Partly remove hood covering.

1. Remove tension rope on hood covering.

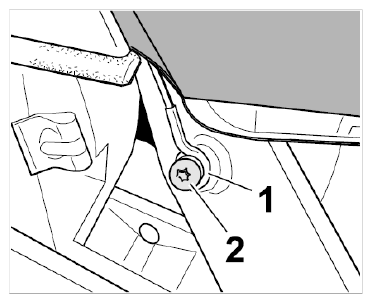

   Fig 1: Removing Hood Covering Tension Rope

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. On the tension rope eye -1-  , unscrew the fastening screw -2-  .
2. Remove seals and retaining frame at sides of roof frame.

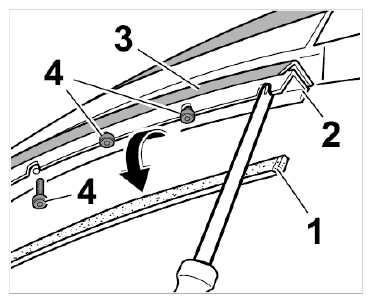

   Fig 2: Removing Seals And Retaining Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Pull the lower seal -1-  out of the profile of the retaining strip -2-  .
   2. 2.2. On the upper seal -3-  with the retaining rail -2-  , unscrew the fastening screws -4-  and remove the seal -3-  and the retaining rail -2-  from the roof frame.
3. Remove retaining strip and hood seal on roof frame 1.

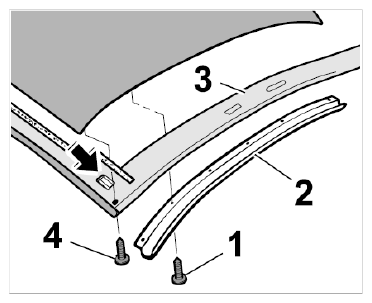

   Fig 3: Removing Retaining Strip And Hood Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Unscrew and remove fastening screws -1-  from the retaining strip -2-  .
   2. 3.2. On the hood seal -3-  , unscrew the fastening screws -4-  .
   3. 3.3. Pull hood seal -3-  at the left and right forward out of roof frame 1.
4. Remove hood covering at sides of roof frame 1.

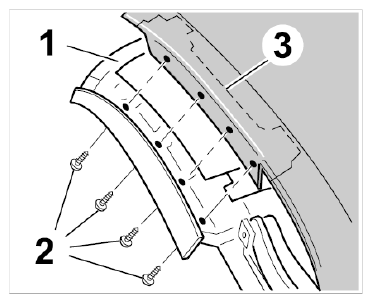

   Fig 4: Removing Sides Roof Frame 1 Hood Covering

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 4.1. On the roof frame -1-  , unscrew the fastening screws -2-  and lift the shaped sheetmetal part -3-  with the hood covering.
5. Remove hood covering at front on roof frame 1.
   Fig 5: Removing Hood Covering

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 5.1. Detach hood covering at front on roof frame 1 and lay it down to the rear.
