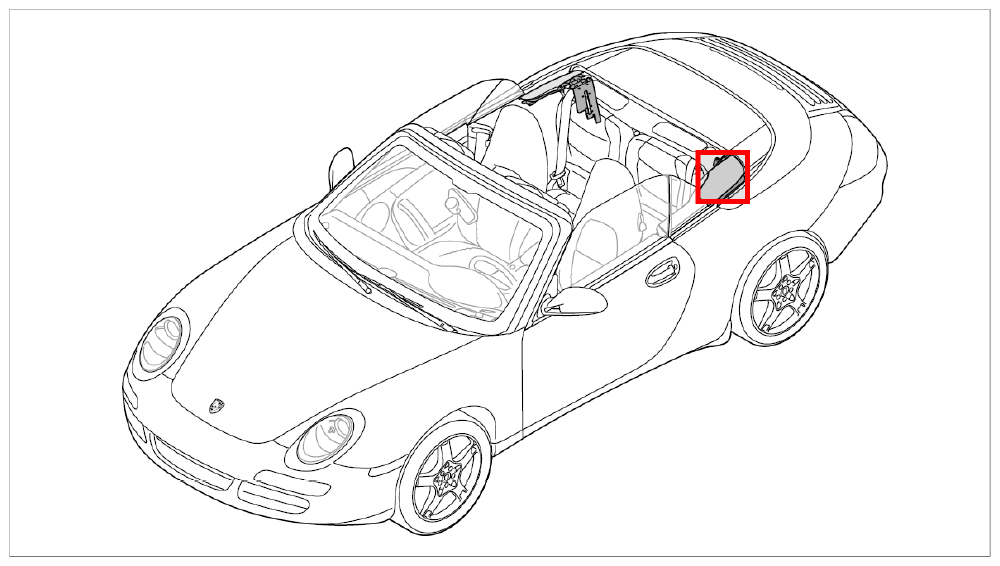

Removing Rear Side Panel Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

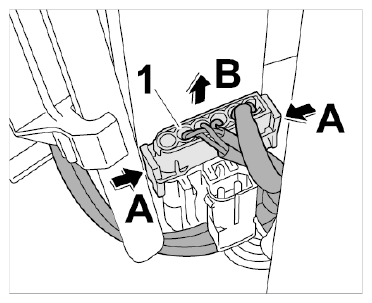

- Press in locking tabs -Arrows A-
and pull electric plug connection -1-
up and off -Arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Insert Allen key into the emergency operation mechanism and turn it counterclockwise (in direction of arrow) until the flap lid starts to move vertically.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

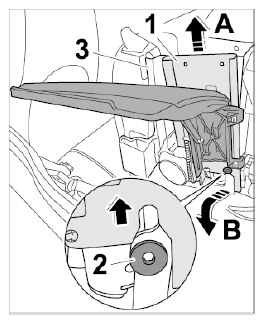

- Move rear side panel flap -1-
out of the pin -2-
in an upwards direction -Arrow A-
and guide out of the frame for the roll-over protection system -3-
downwards -Arrow B-
.
