Installing Microswitch For Flap

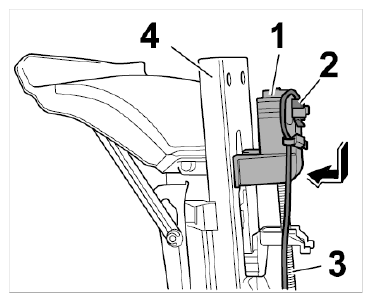

Insert spindle mount -1- together with top microswitch -2- first from above into the spindle -3- and then into the bracket -4- -arrow- .

Fig 1: Inserting Spindle Mount With Microswitch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert Allen key -1- in the emergency operation mechanism -2- -arrow A- and turn it to the right or left -arrow B- until the front fastening screw of the top microswitch can be accessed -arrow C- .

Fig 2: Turning Spindle Using Emergency Operation Mechanism
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

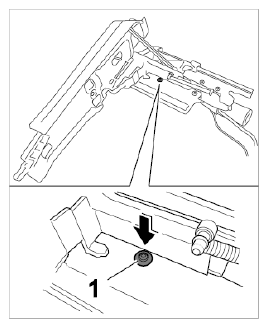

Insert and screw in front fastening screw -1- of top microswitch -arrow- .

Fig 3: Inserting Front Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert Allen key in the emergency operation mechanism and turn it to the right or left until the rear fastening screw of the top microswitch can be accessed. → Turning spindle using emergency operation mechanism .
Insert and screw in rear fastening screw -1- of top microswitch -arrow- .

Fig 4: Inserting Rear Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

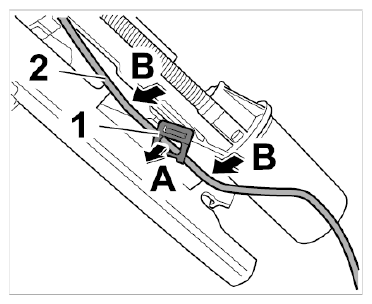

Bend cable fixing device -1- on top engine slightly outwards -arrow A- and engage electric connecting line -2- for the top microswitch in the cable fixing device -arrows B- .

Fig 5: Engaging Cable In Fixing Device
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert Allen key in the emergency operation mechanism and turn it to the right until the bottom microswitch can be accessed → Turning spindle using emergency operation mechanism .
Insert bottom microswitch -1- in bracket -2- -arrow- .

Fig 6: Inserting Bottom Microswitch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

New circlips must always be used when securing the bottom microswitch.

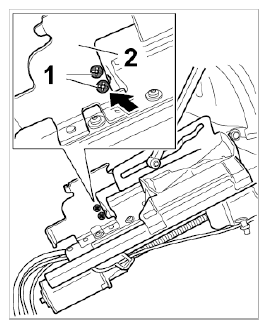

Insert both circlips -1- from the side -arrow- and press in until they fully connect with the bracket -2- .

Fig 7: Installing Bottom Microswitch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When installing the flat connectors with the electric connecting lines, the correct installation position in the central connect must be observed (see 9797IN CONNECTOR - GENERAL INFORMATION ).

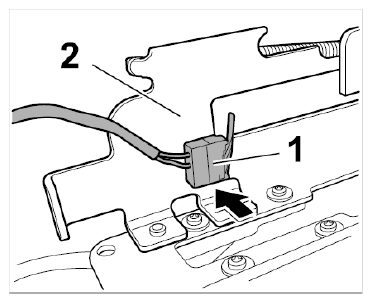

Insert the three flat connectors together with the electric connecting lines -1- in the central connector -2- -arrow- , until the flat connectors audibly engage.

Fig 8: Establishing Cable Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Using a tie-wrap -arrow A- fasten electric connecting lines to the bracket.

Fig 9: Fixing Cable Ties
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tie electric connecting lines together using a tie-wrap -arrow B- .
