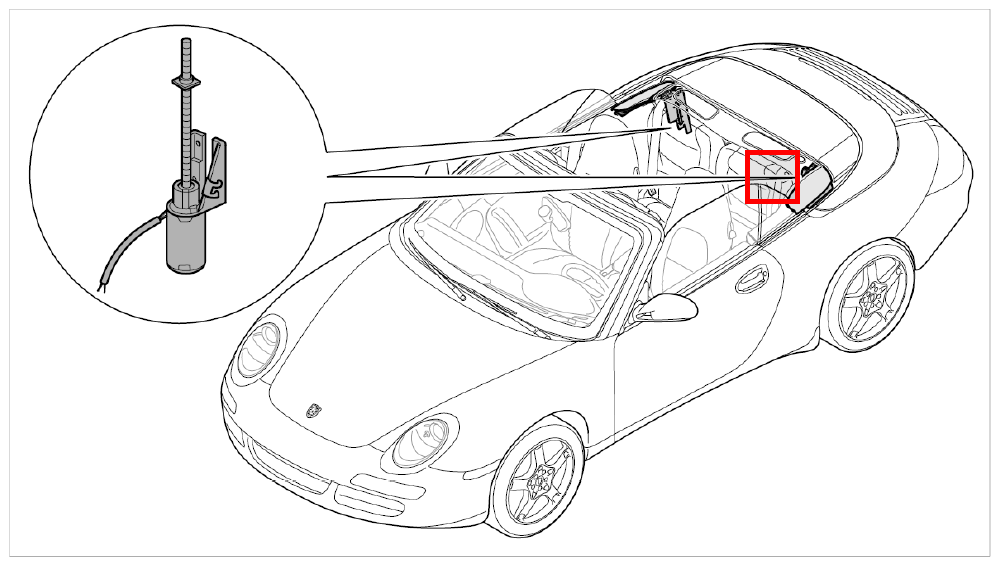

Removing Flap Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Release the two flat connectors of the electric connecting lines -1-
using press-out tool -2- press-out and unlocking tools for flat and round plug connections of every size Nr. 155
(-arrow A-
) and pull out from the central connector -3-
(-arrow B-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Insert Allen key -1-
into the emergency release -2-
(-arrow A-
) and keep turning to the right -arrow B-
until access can be gained to the four motor fastening screws -arrow C-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Loosen the four fastening screws -1-
of the motor and remove motor to the side -arrows-
from the bracket for the rear side section flap -2-
and from the spindle mounting -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
