Installing Tension Strap
- Install tension strap on roof frame 1.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

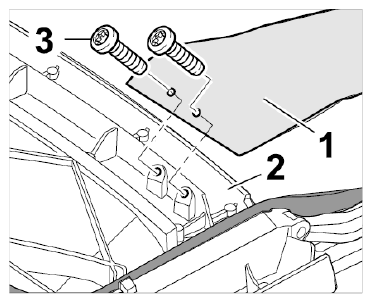

- 1.1. Position tension strap -1-
on roof frame (1) -2-
and secure with the fastening screws -3-
. → Tightening torque: 5 Nm (3.5 ft. lb.)
- Install tension strap on the corner bow.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

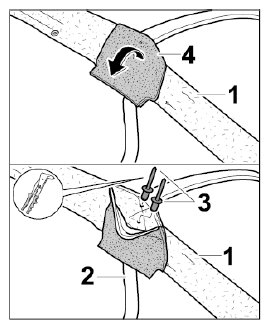

- 2.1. Position tension strap -1-
at the holes provided on the corner bow -2-
.
- 2.2. Fold sewn-in foam strip -4-
aside -arrow-
and rivet on tension strap -1-
with blind rivets -3-
.
- Install tension strap and bracing strap on the tension bow.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 3.1. Position bracing strap -1-
as shown.
- 3.2. Position tension strap -2-
and bracing strap -1-
at the holes provided on the tension bow -3-
and rivet on with blind rivets -4-
.
