Installing Spring Plate

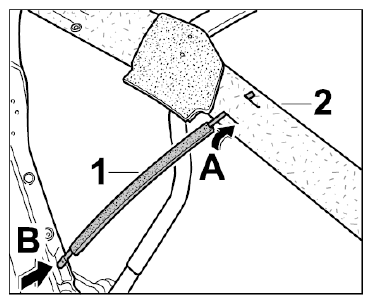

  1. Guide the spring plate -1-  through the tension strap -2-  (-arrow A-  ) and press it into the main folding top bow -arrow B-  until it engages securely.
    Fig 1: Installing Spring Plate
    G09831975Courtesy of PORSCHE CARS NORTH AMERICA, INC.
