Installing Plastic Panel
- Install plastic panel.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

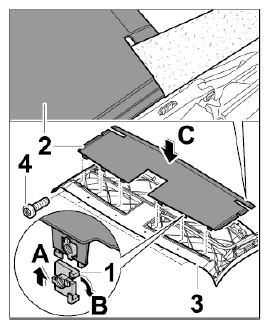

- 1.1. Insert fixing clip -1-
into the tab on the plastic panel -2-
from behind (-arrow A-
) and turn 90° clockwise -arrow B-
.
- 1.2. Position plastic panel -2-
on roof frame (1) -3-
(-arrow C-
) and secure with the fastening screws -4-
. → Tightening torque: 5 Nm (3.5 ft. lb.)

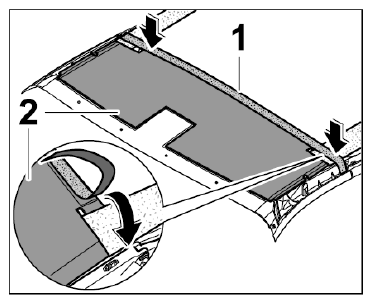

- 1.3. Stick felt tape -1-
along the rear edge of the plastic panel -2-
(-arrows-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Install centering journal. → 611019 REMOVING AND INSTALLING FRONT HOOD MOUNT - section on "Installing"
