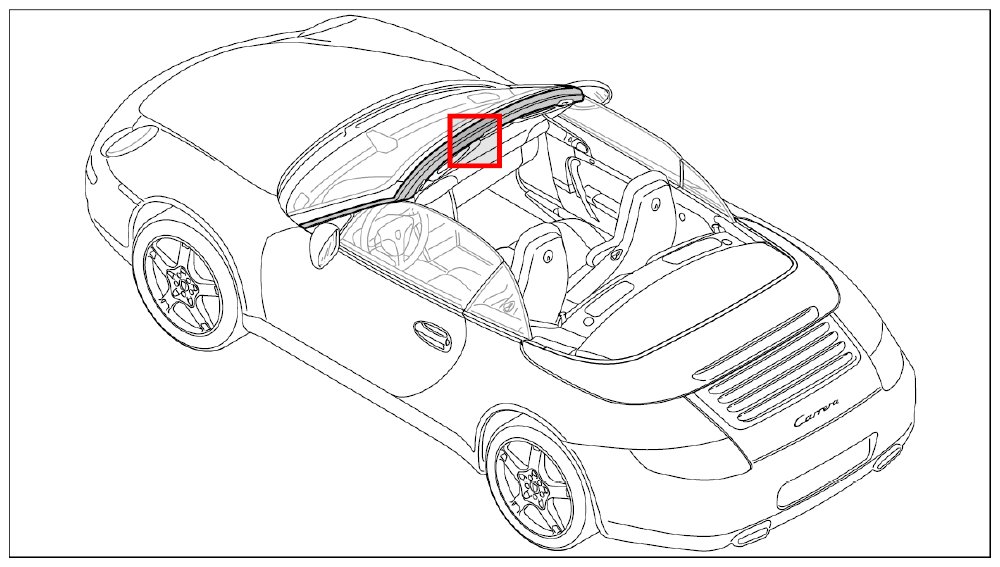

Removing Seal For Cowl Panel Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

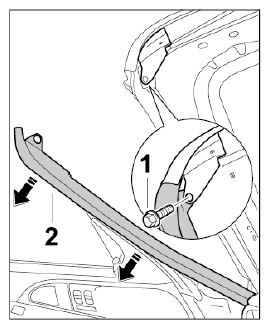

- Unscrew fastening screw -1-
and pull off rubber seal for door -2-
on the left and right as far as the door hinge.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

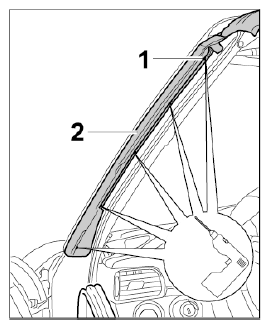

- Drill out rivets -1-
from the integrated sheetmetal strips of the seal for the cowl panel frame -2-
on the left and right using a 4 mm drill bit.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

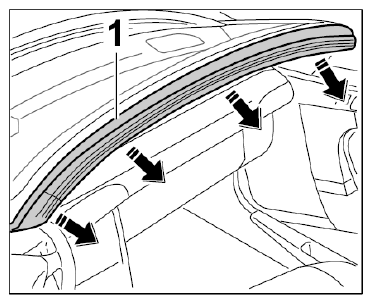

- Pull seal for cowl panel frame -1-
off the sheetmetal flange on the cowl panel frame.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
