Installing Seal For Cowl Panel Frame

Place seal for cowl panel frame -1- on the sheetmetal flange on the cowl panel frame.

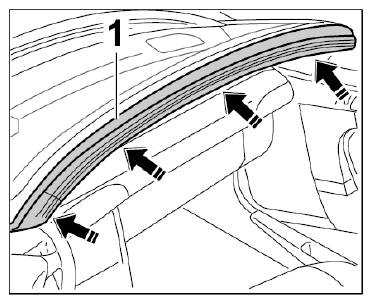

Fig 1: Installing Cowl Panel Frame Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position seal for cowl panel frame -2- at the left and right and secure with new rivets -1- .

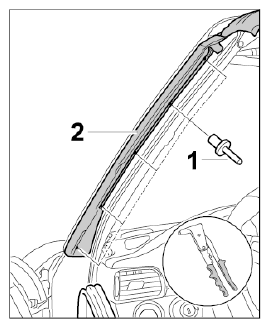

Fig 2: Identifying Cowl Panel Frame Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure that the water drain is not trapped.
Press rubber seal for door -2- at the left and right onto the sheetmetal flange and slide in sheetmetal insert -Inset- .

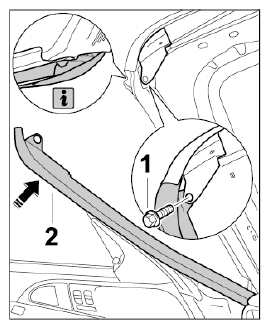

Fig 3: Securing Door Rubber Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw -1- . → Tightening torque: 6 Nm (4.5 ft. lb.)
