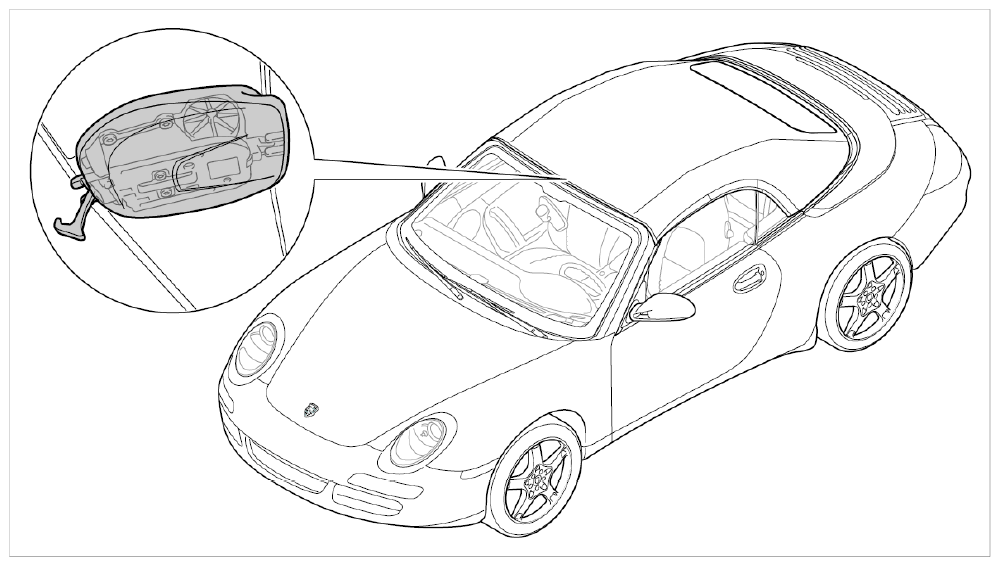

Removing Cover For Convertible Top Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove cover -B-
of convertible top lock -A-
. Hold the cover at the top of the front latch area with your fingers and release it by pressing it forwards. Pull cover -B-
down off the convertible top lock.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

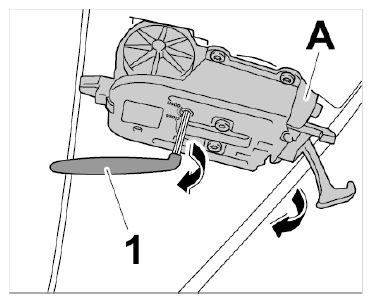

- Insert Allen key -1-
into convertible top lock -A-
and turn in -direction of arrow-
(inscription "Open") until locking hook is in the extended end position (perceptible stop).
