Installing Convertible Top Lock: Notes

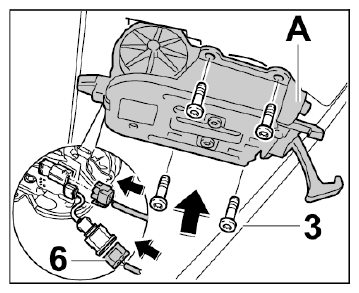

- Plug in electric plug connections -6-
and position convertible top lock -A-
on roof frame. Coat the four fastening screws -3-
with screw locking lacquer and tighten. → Tightening torque: 8 Nm (6 ft. lb.)
