Installing Cover For Convertible Top Lock

  1. Slide cover -B-  over the convertible top lock from the rear -A-  . Ensure the cover -B-  is centered and engages in the guide, then push it forward until it clicks into position. Press the front edge of the cover -B-  up and bend it forward slightly with your fingers. The cover -B-  clicks into place.

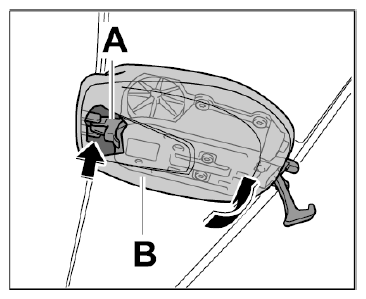

    Fig 1: Installing Convertible Top Lock Cover
    G09831902Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Lock convertible top.
