Removing Bracket For Hardtop Mount

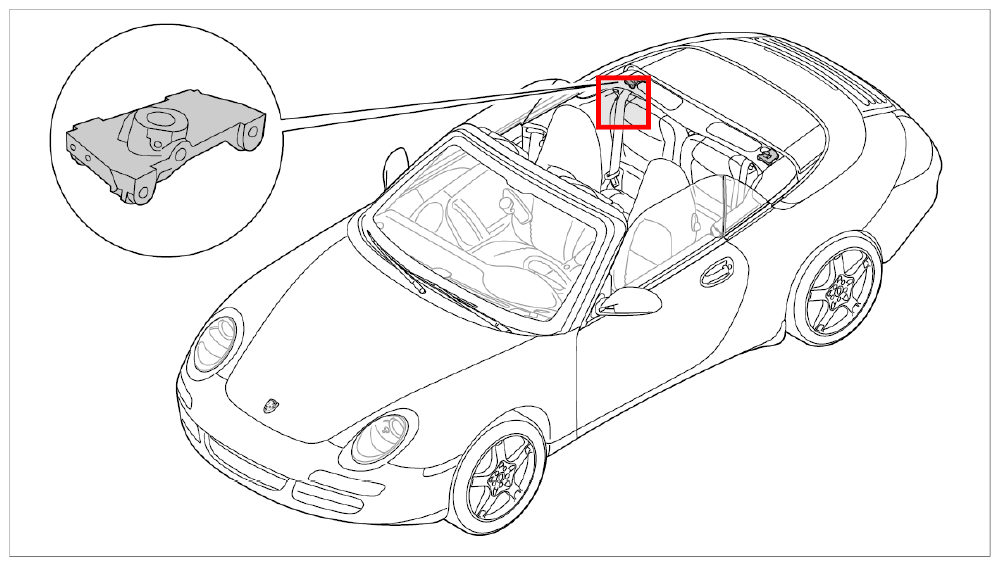

Fig 1: Identifying Hardtop Mount Bracket Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only when removing the left bracket for hardtop mount.

1. Press in locking tabs -Arrows A-  and pull electric plug connection -1-  up and off -Arrow B-  .

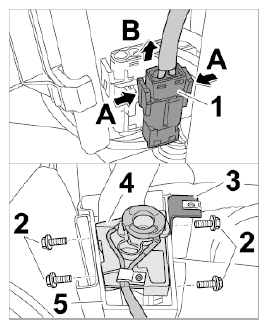

   Fig 2: Removing Bracket For Hardtop Mount

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew fastening screws -2-  inside and remove the retaining angle -3-  .
3. Unscrew fastening screws -2-  outside and remove bracket for hardtop mount -4-  upwards out of the frame of roll-over protection system -5-  .
