Installing Bracket For Hardtop Mount

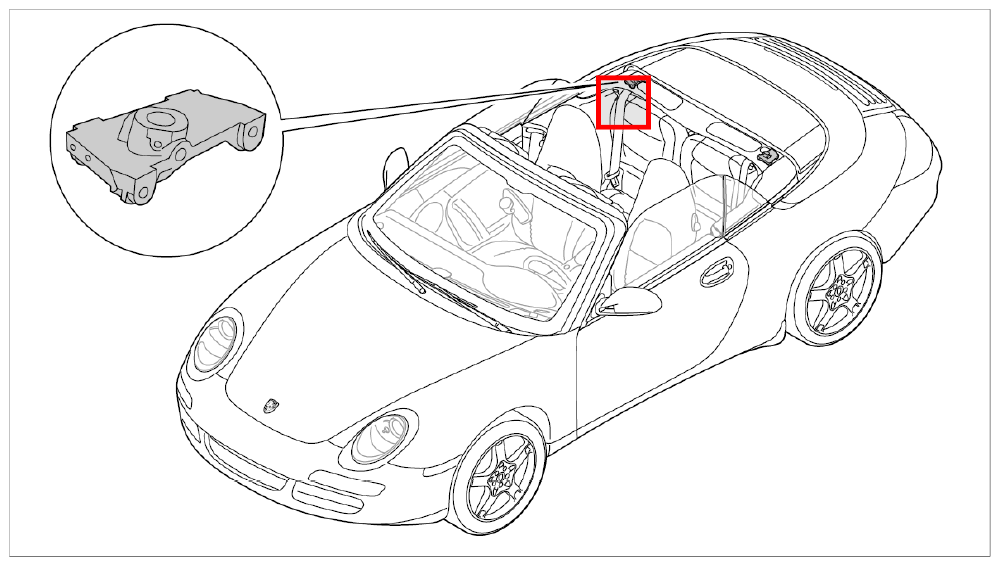

Fig 1: Identifying Hardtop Mount Bracket Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position bracket for hardtop mount -4- on frame for roll-over protection system -5- and screw down the fastening screws -2- on the outside. Tightening torque → Tightening torque: 9.7 Nm (7.2 ft. lb.)

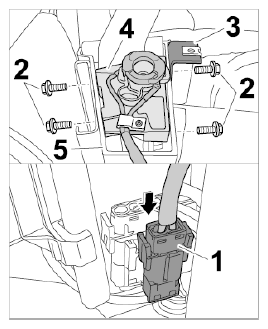

Fig 2: Installing Bracket For Hardtop Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position retaining angle -3- on frame for roll-over protection system -5- and screw down with the fastening screws -2- on the inside. Tightening torque → Tightening torque: 9.7 Nm (7.2 ft. lb.)
Information

Only when removing the left bracket for hardtop mount.
Press in electric plug connection -1- until it audibly engages.
