Removing Water Channel

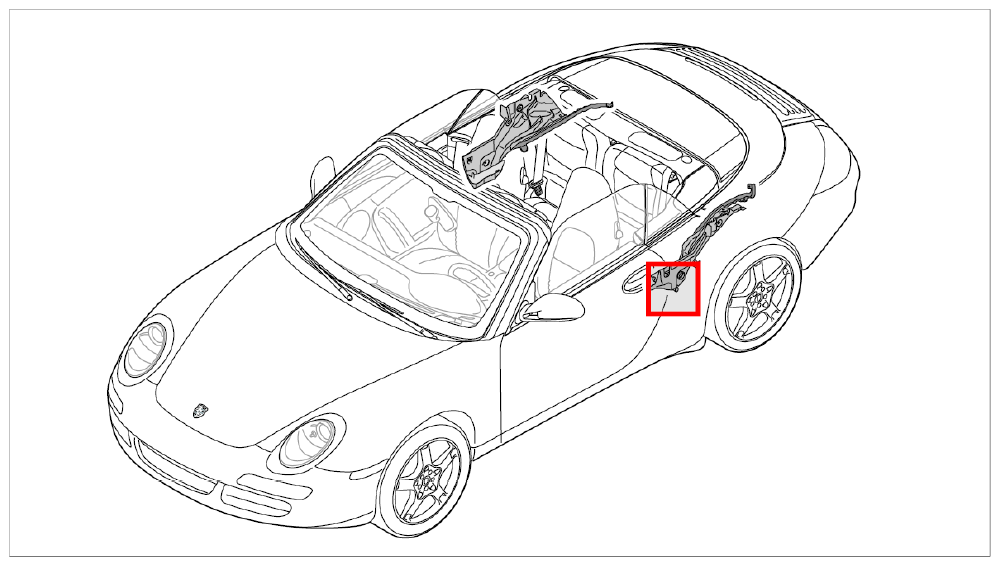

Fig 1: Identifying Water Drip Pan Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Wear personal protective gear.

1. Remove cable holder -1-  (-arrow A-  ) and loosen sound absorber -2-  to the side -arrow B-  .

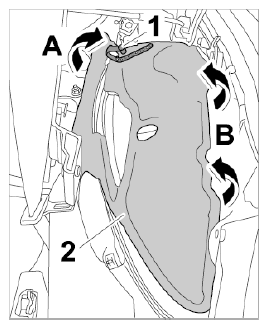

   Fig 2: Loosening Sound Absorber

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press out clamp -1-  and screw off fastening nut -2-  .

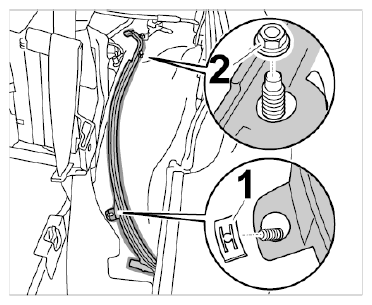

   Fig 3: Identifying Water Channel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Cut out water channel -1-  with a knife -2-  .

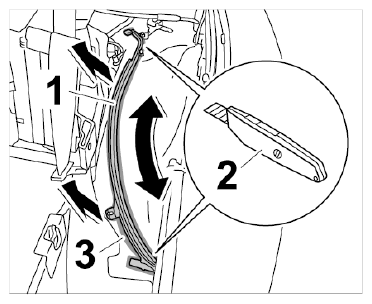

   Fig 4: Removing Water Channel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove residual adhesive -3-  and clean sealing surface.
